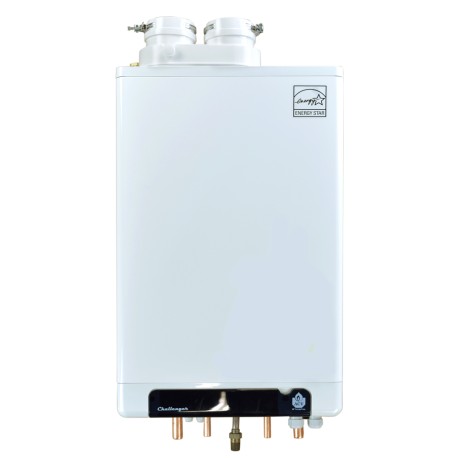

Challenger Solo CC105s Condensing Gas Boiler, 82,000 BTU w/ Primary/Secondary Manifold
Brand: Triangle Tube
Part#: CC105s
Model: Challenger Solo CC 105s
This product has been discontinued. No direct replacement is available at this time.
Challenger Solo CC105s model by Triangle Tube (ACV) is a mod-con, heat-only boiler with 82 MBTU (Net AHRI) output.

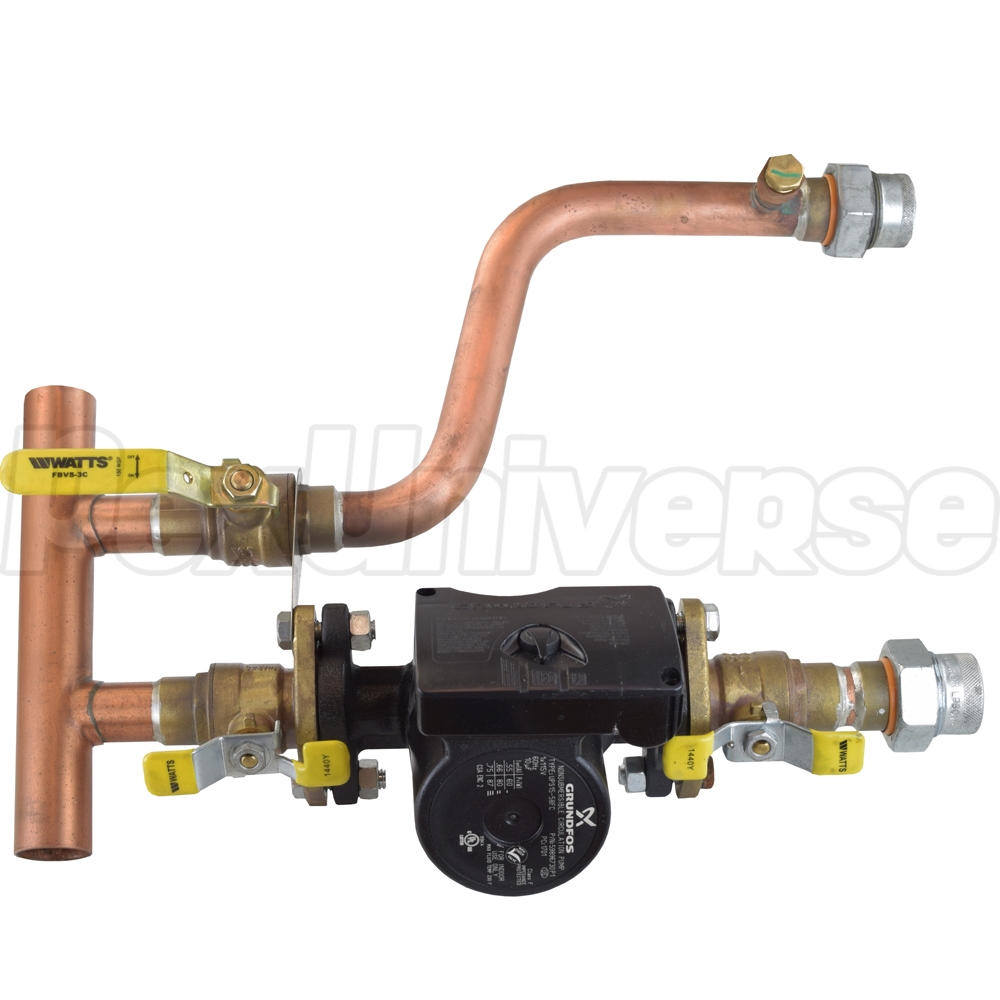

Note: this updated version now includes CCRKIT202 primary/secondary piping manifold with Grundfos circulator and shutoff valves - for quicker and easier installation.

Features:
  • Copper tube/aluminum block ASME heat exchanger
  • St. steel burner w/ woven fiber mesh
  • Direct spark ignition
  • Variable-speed blower
  • Negative-pressure regulated gas valve
  • Outdoor reset control
  • Low-water, high-limit and freeze protection
  • Built-in pump and aquastat for indirect water heater
  • Glycol-compatible
  • Direct-Vent sealed combustion
  • Compatible with PVC, CPVC, PP (PolyPropylene - recommended) and S. Steel vent pipe
  • Compact and low-profile
  • Low-NOx - 2012 SCAQMD Certified.

Technical Specifications:
  • Input Modulation (BTU): 29,000 - 106,000
  • DOE Rating (BTU): 94,000
  • Net AHRI Rating (BTU): 82,000
  • Efficiency (AFUE): 94%
  • Turndown (Modulation) Ratio: 3.7 : 1
  • Fuel Type: Natural Gas (NG) or Propane (LP)
  • System Type: Hydronic (Hot Water)
  • Boiler Connections: 1" NPT
  • Gas Connection: 1/2" NPT
  • Condensate Drain: 3/4" NPT
  • Vent/Air Size: 2" standard, can be increased up to 3"
  • Vent Material: PVC, CPVC, PolyPropylene (recommended), St. Steel
  • Power Supply: 120V, 60Hz
  • Dimensions (Depth x Width x Height): 9-1/2" x 17-3/4" x 25-1/2"
  • Weight (lbs): 73
  • Mounting Type: Wall-mounted (Wall-hung).

Warranty:
10-Year limited heat exchanger warranty / 1-Year limited parts warranty
