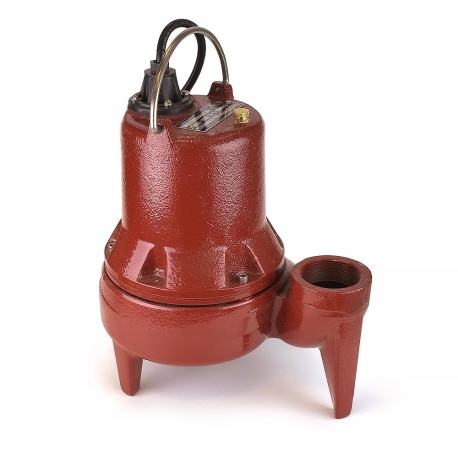

Manual Sewage Pump, 10' cord, 1/2 HP, 208/230V
Brand: Liberty Pumps
Part#: LE52M
Usually ships: within 7-8 business days

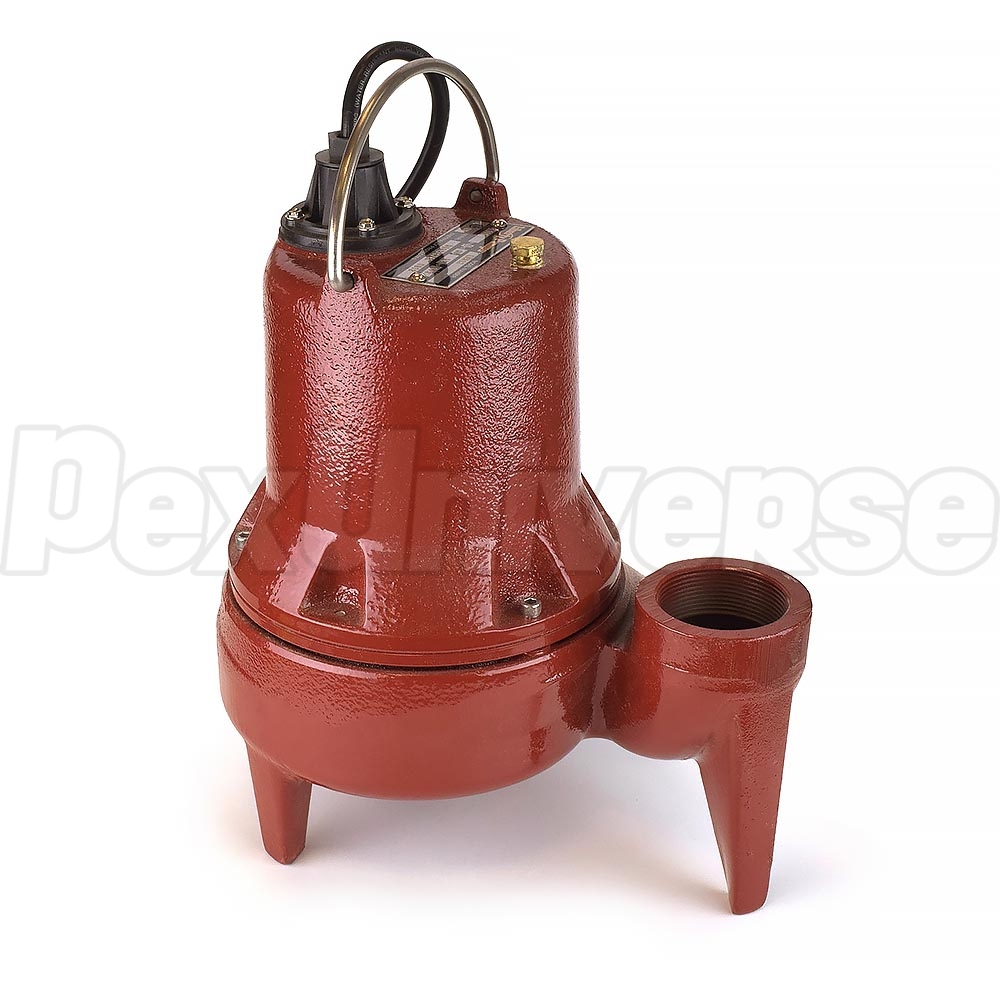

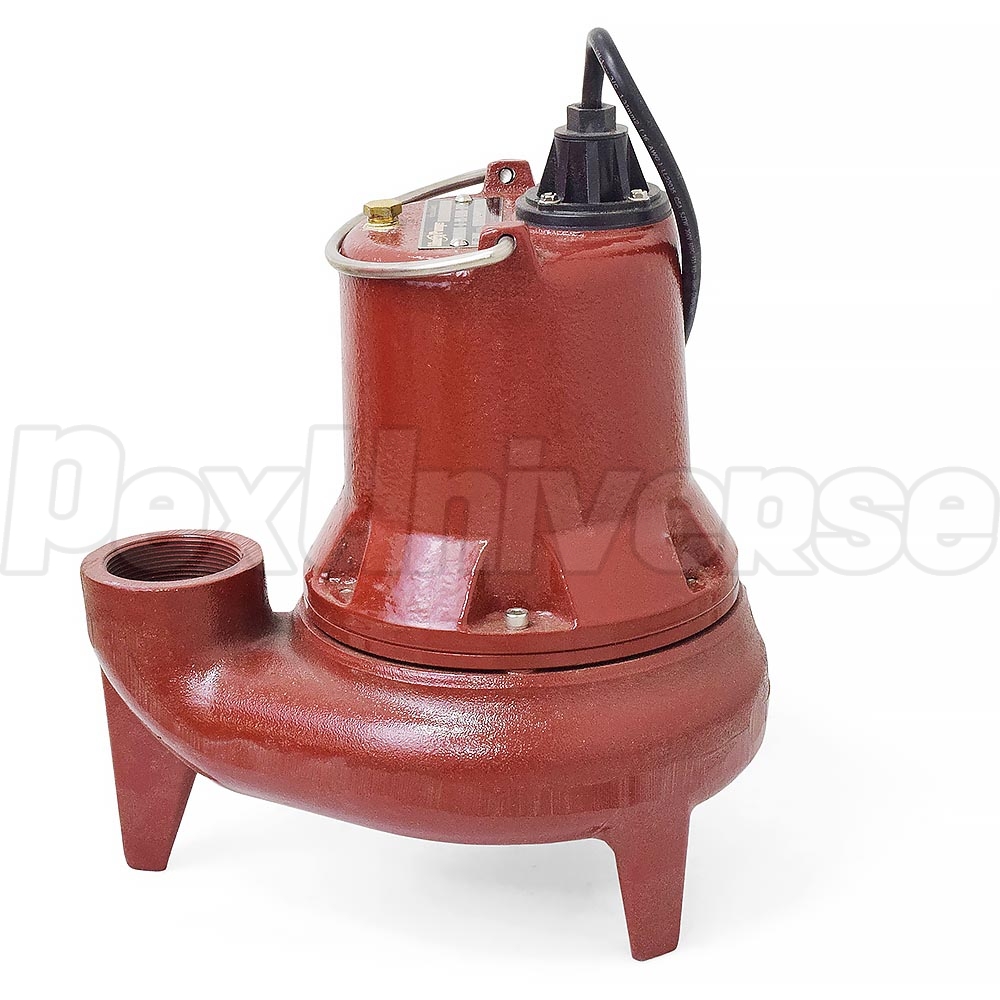

Liberty Pumps LE52M is a 230V 1/2HP Manual Submersible Sewage/Effluent Pump with 10ft quick-disconnect power cord. These Liberty Pumps are intended to be run using an approved liquid level control or approved motor control with a correct rating that matches motor input in full load amperes. CAUTION: Do not let the pump run dry. Be sure that when the pump shuts off, at least 6" of fluid is left in the basin so the impeller remains submerged. Separate approved pump control device or panel is required for automatic operation.

Liberty Pumps LE52M features 25 feet shut-off head, 2" FNPT Discharge and a 2-vane semi-open impeller that allows 2" solids-handling. Its efficient 1/2HP motor with permanently lubricated bearings, stainless steel fasteners and quick-disconnect power cord design make this a perfect choice for residential and light commercial sewage applications.

  • Heavy cast iron construction
  • Oil filled, thermally protected motor
  • Permanently lubricated bearings
  • 2-vane, corrosion resistant HYTREL impeller
  • All stainless steel fasteners and rotor shaft
  • Quick-disconnect 10' standard power cord allows replacement of cord in seconds without breaking seals to motor

Technical Specifications:
  • Horsepower: 1/2HP
  • Cord length: 10'
  • Discharge: 2" FNPT
  • Solids Handling: up to 2"
  • Shut-off Head: 25'
  • Voltage: 208-230V
  • Amps: 6.8
  • Hertz: 60 Hz
  • Phase: 1
  • Maximum fluid temperature: 140°F
  • Height: 14"
  • Width: 11.75"
  • Weight: 42 lbs.
  • Minimum basin diameter: 18"
  • Minimum basin depth: 24"

3 years manufacturer's warranty
