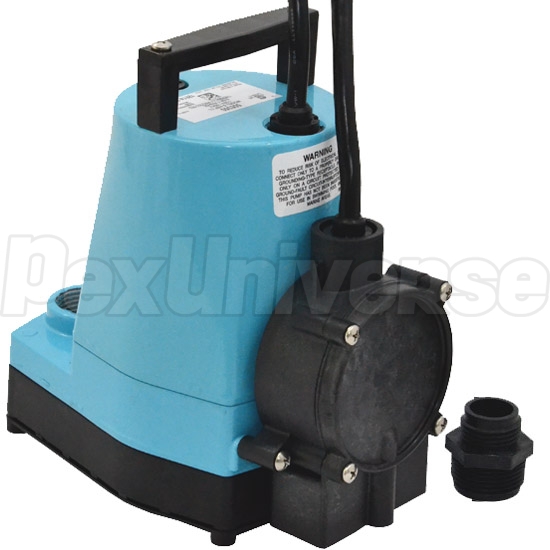

Little Giant 5-ASP-LL Submersible Utility Pump Rear ViewLittle Giant 5-ASP-LL Submersible Utility Pump BoxLittle Giant 5-ASP-LL Submersible Utility Pump Performance Chart

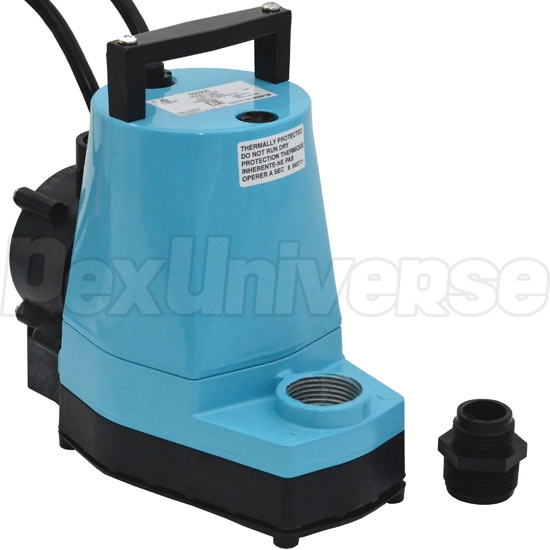

Little Giant 5-ASP-LL Submersible Utility Pump Front View

5-ASP-LL Automatic Low-Level Submersible Utility/Sump Pump w/ Piggyback Diaphragm Switch and 18' cord, 1/6 HP, 115V

Little Giant

Brand: Little Giant

Mfr Part#: 505350

Model: 5-ASP-LL

UPC#: 010121053502

Availability: In Stock
Usually ships: within 1 business day
Qty Price
$146.95 / each & Free Shipping
  • Description
  • Literature
  • Reviews
  • FAQs (1)

Little Giant 5-ASP-LL (505350) is a 1/6HP, Low-Level (LL), Automatic, dual-purpose Submersible Utility Pump / Sump Pump w/ Piggyback Diaphragm Switch, oil-filled motor lubricated for the life and a 18ft long power cord. Little Giant 5-ASP-LL model 505350 is capable of pumping water down to 1/8" in "manual" operating mode, while in "automatic" mode, a diaphragm pressure switch works with "on" levels at 2" to 3" and "off" levels at 0.5" to 1.5".
Little Giant 5-ASP-LL models are capable of handling up to 1200 Gallons per hour at 1" ft of head pressure drop and feature a 1" FNPT discharge with an optional 3/4" garden hose adapter (included), as well as screened inlet for easy cleaning and maintenance of the pump. 5-ASP-LL series utility pumps have an epoxy coated cast aluminum housing and can be used for a wide variety of applications, including residential, commercial, industrial and other de-watering and fluid transfer applications.

Head (ft) Flow (GPH) Head (m) Flow (LPH)
1 1200 0.3 4542.5
3 1170 0.9 4428.9
5 1100 1.5 4164.0
10 1000 3.0 3785.4
15 840 4.6 3179.7


  • 1/6 HP shaded pole motor with overload protection;
  • Designed for continuous duty;
  • Manual Mode: Pumps down to 1/8" water level;
  • Automatic Mode: "On" level at 2" to 3" and "Off" level at 0.5" to 1.5";
  • Garden hose adapter for discharge is included;
  • Removable inlet screen for easy cleaning;
  • Epoxy coated cast aluminum housing;
  • Viton shaft seal;

Technical Specifications:

  • Model: 5-ASP-LL;
  • HorsePower: 1/6 HP;
  • Max. Flow: 1200 GPH @ 1' of Head;
  • Cord Length: 18ft;
  • Switch: Automatic, Diaphragm type;
  • Shut Off @ 26.3ft of head;
  • Voltage: 115V;
  • Hertz: 60 Hz;
  • Amps: 5A;
  • Watts: 380W;
  • Weight: 10.25 lbs;
  • Dimensions (H x W x L): 7.75" x 4.31" x 7.7";
  • Certification: UL/CSA;


1 year manufacturer's warranty.
No reviews yet
Indicate an email address where you wish to receive the answer to your question.
Enter numbers shown above without spaces. This step helps us to prevent automatic submissions.
Is this pump suitable for use with potable water?
Read 1 answer
No. Only products which meet the NSF 61 standard (and now also NSF 372 for lead-free) are approved for potable water applications.
Answered on 9/26/2017 by PexUniverse Customer Service
