9SС-CIA-RF Automatic Sewage Pump w/ Piggyback Wide Angle Float Switch and 20' cord, 4/10 HP, 115V Little Giant
9SС-CIA-RF Automatic Sewage Pump w/ Piggyback Wide Angle Float Switch and 20' cord, 4/10 HP, 115V
Brand: Little Giant
Part#: 509412
Model: 9SC-CIA-RF
This product has been discontinued. No direct replacement is available at this time.

Description

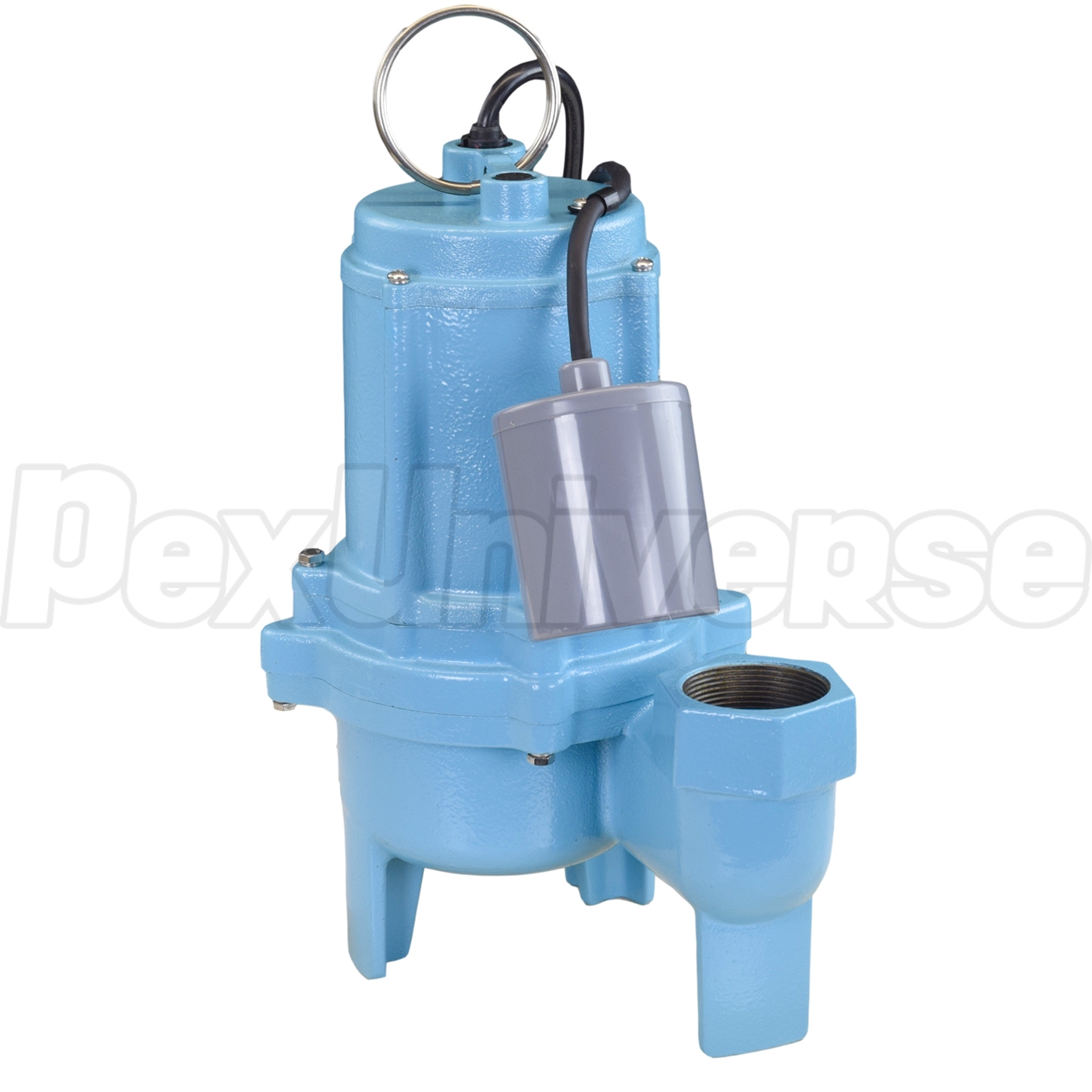

Little Giant 9SС-CIA-RF (509412) is a 4/10HP, dual-mode (Automatic or Manual), Submersible Sewage Pump with a Remote Piggyback-type Float Switch and a 20ft long power cord. The piggyback remote float switch allows to regulate the On and Off levels for the automatic operation mode of the pump. When mounted on the pump (default install), the float switch has On a level range of 16"-19" and Off level range of 9"-11". The 509412 model also features an oil-filled motor (lubricated for life), 2" high legs and a 2" FNPT discharge.

The 509412 model sewage pump is capable of handling spherical solids up to 2" in diameter and is commonly installed at the bottom of the sewage collection tank/basin. 2" legs integrated into the pump's design eliminate the need for a pedestal. The Little Giant 9SС-CIA-RF model is specifically designed to handle both sewage waste and wastewater (effluent waste) in residential and medium-size commercial and light industrial applications.

9SС-CIA-RF model sewage pump comes with an epoxy-coated cast iron housing & volume, as well as other composite and stainless steel non-corrosive parts to assure long-term integrity and uninterrupted performance.


Features:
  • 4/10HP PSC motor with overload protection
  • Designed for continuous duty
  • Epoxy coated cast iron housing, cover and volute
  • 2" FNPT discharge
  • Nitrile with carbon and ceramic faces
  • Upper sintered sleeve and lower ball bearings
  • Vortex Nylon impeller
  • Handles 2" solids
  • cCSAus listed
  • On level 16"- 19"
  • Off level 9" - 11"

Technical Specifications:
  • Horsepower: 4/10HP

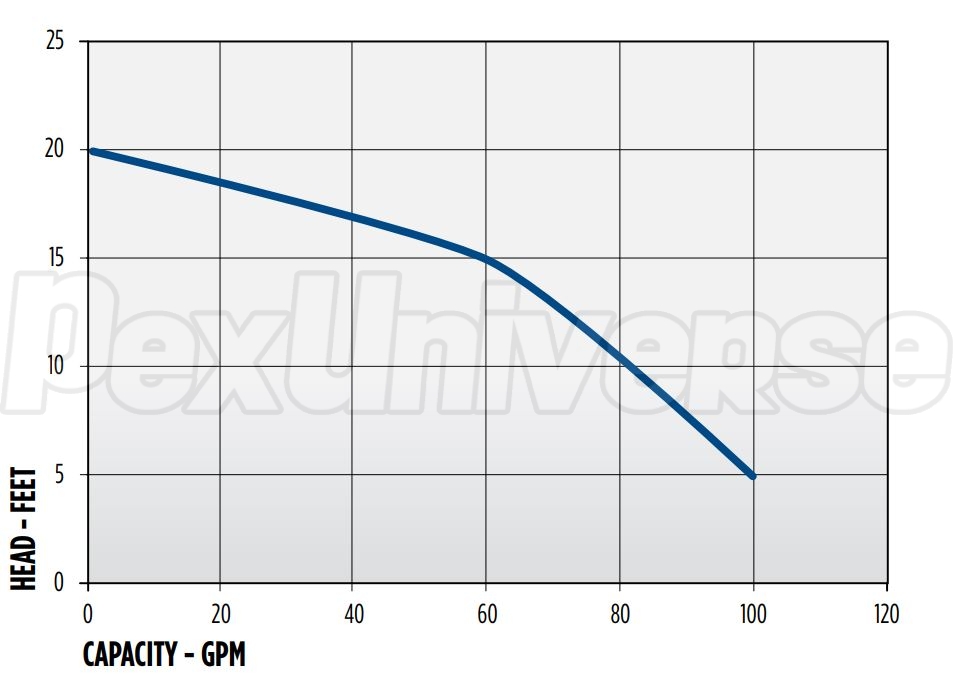

  • Flow: 100 GPM @ 5' Head
  • Cord Length: 20'
  • Shut Off: 20'
  • Voltage: 115V
  • Hertz: 60
  • Amps: 8
  • Watts: 870
  • Weight: 38.4 lbs.
  • Height: 13.6
  • Width: 10.4
  • Length: 8.6

Warranty:
2 years from the date of installation.
