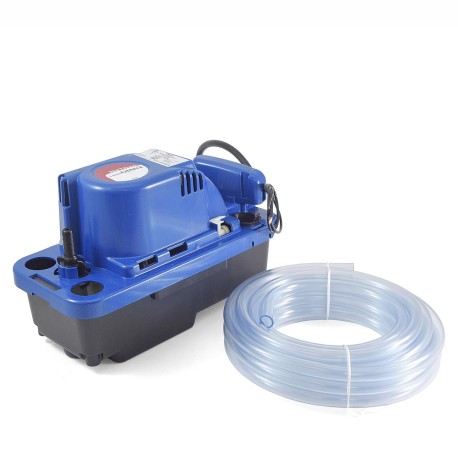

VCMX-20ULST Automatic Condensate Pump w/ Safety Switch, Tubing and 6' cord, 1/30 HP, 115V

Little Giant

Brand: Little Giant

Mfr Part#: 554550

Model: VCMX-20ULST

UPC#: 010121120761

Availability: In Stock
Usually ships: within 1 business day
Qty Price
$48.95 / each
  • Description
  • Literature
  • Reviews (1)
  • FAQs

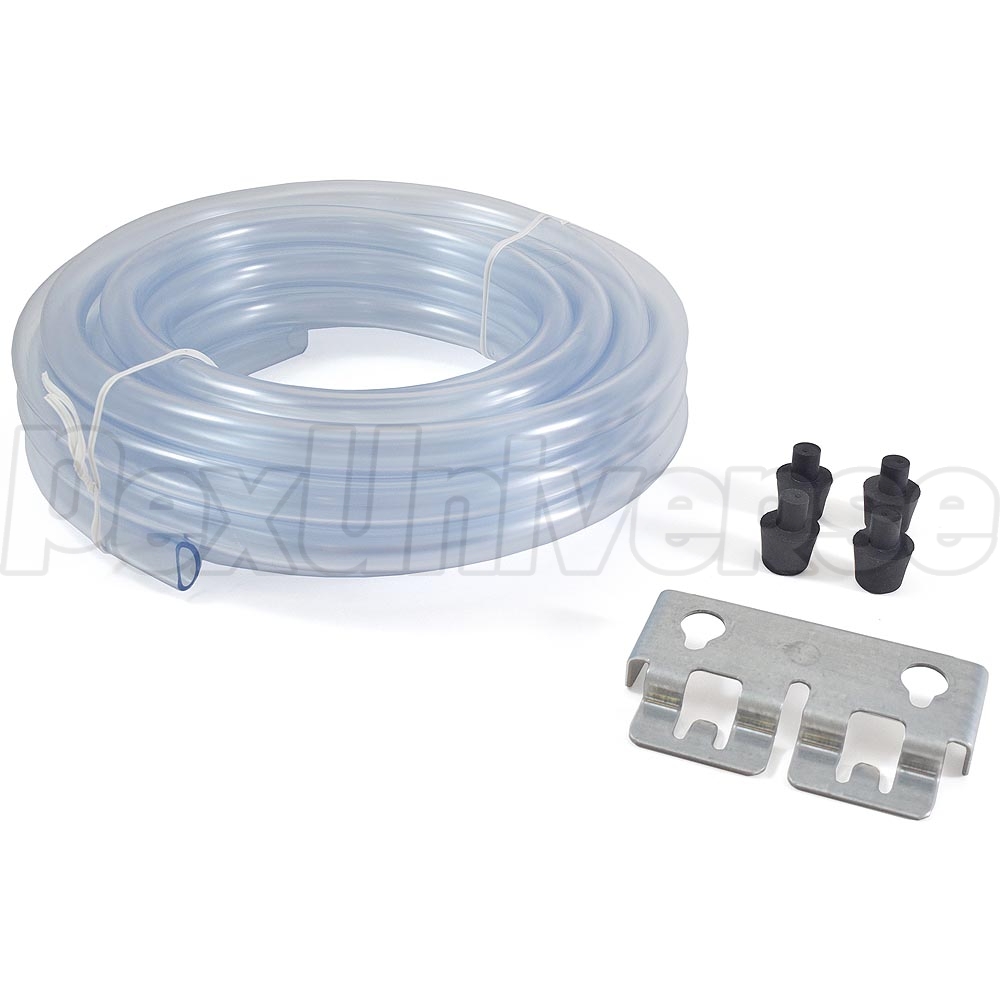

Little Giant VCMX-20ULST (554550) 1/30HP Automatic Condensate Removal Pump includes 20ft of 3/8" Tubing and Safety Switch, which gives the option to connect air-handler shutdown or activate an alarm or building automation system.

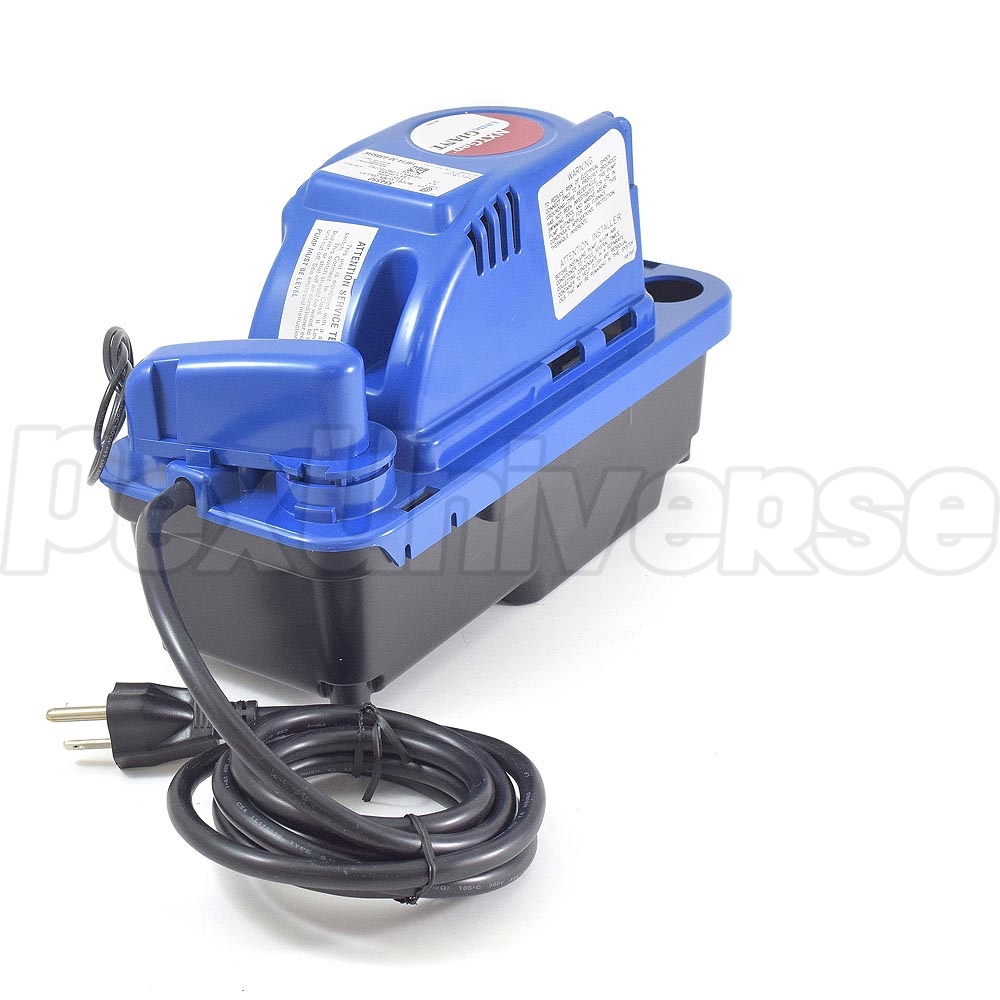

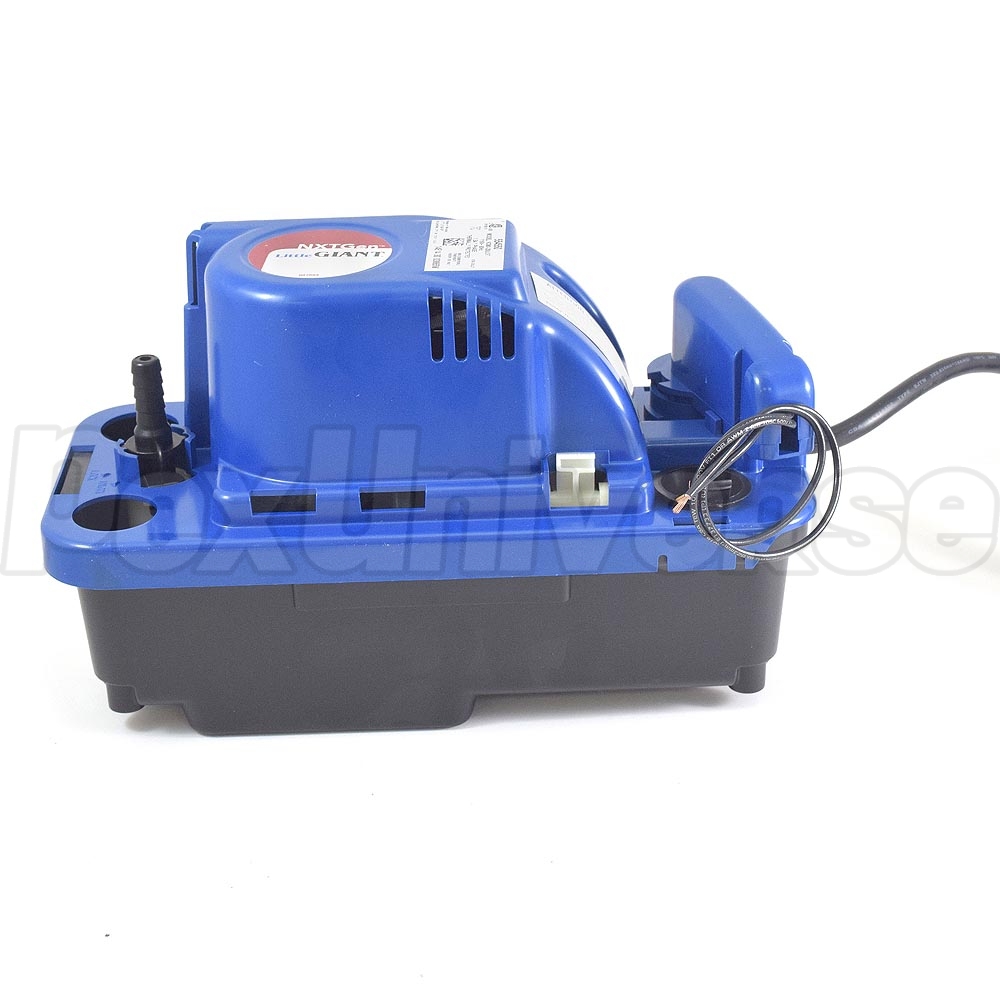

This Little Giant Condensate Removal Pump has 6ft power cord, 1/2 gal. Oil Resistant Tank, multiple steel mounting bracket for use on either side of the tank, and slimmer footprint size for flexibility in tight spaces. Also the Little Giant VCMX-20ULST features 3/8" 1/4-Turn Check Valve, that allows servicing without removal of tubing, eliminating water spills. Oil-resistant tank and check valve eliminate the problem of cracked tanks with exposure to oil.

Little Giant condensate pumps VCMX (X Next Generation) offer greater head capacities than the VCMA Series. Patent-pending cooling design increases pump life.

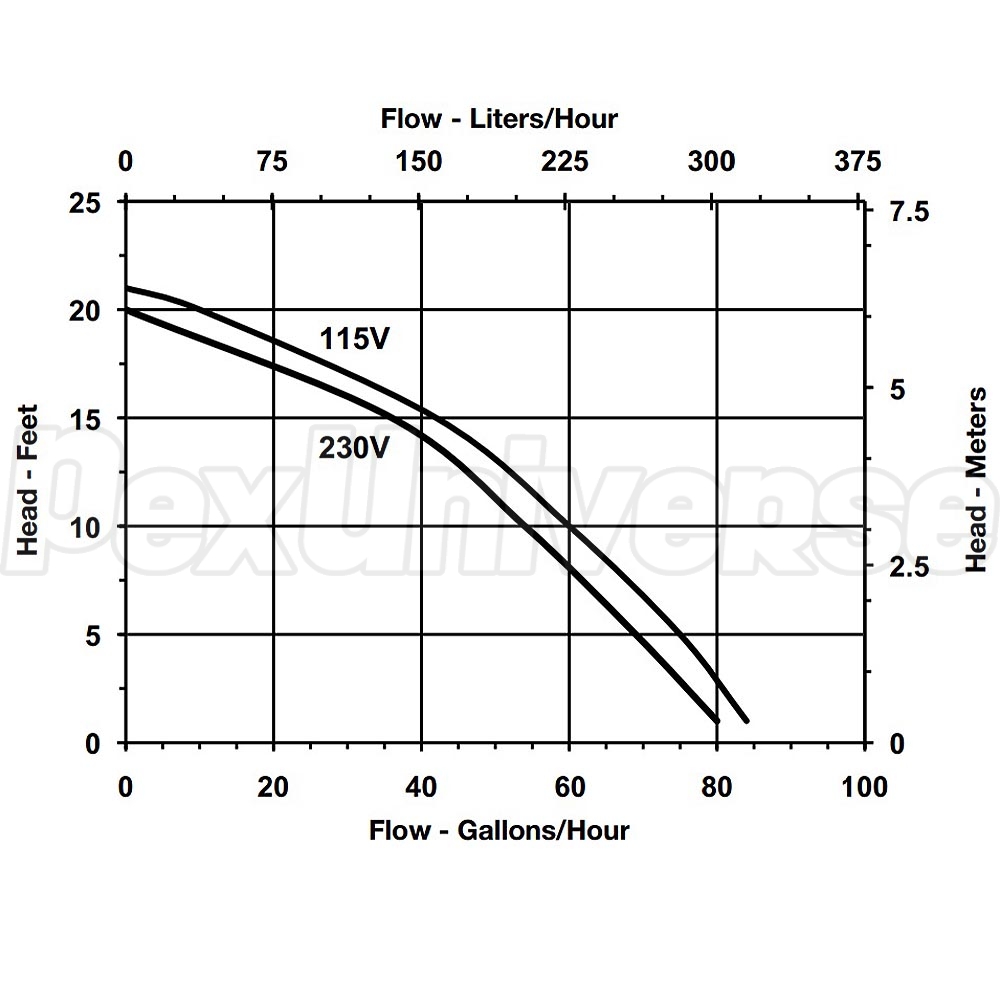

Head (ft) Flow (GPH) Head (m) Flow (LPH)
1 84 0.3 318.0
5 75 1.5 283.9
10 60 3.0 227.1
15 42 4.6 159.0
20 10 6.1 37.9


  • Slimmer Footprint (4.8" x 10.2" x 6.5" size);
  • 1/4-Turn Check Valve;
  • Multiple Brackets;
  • Thermal overload protection;
  • External Overflow Safety Switch
  • Rubber feet absorb vibration on hard surface installations;
  • External Test/Run Lever for quick and easy drainage of tank for servicing;
  • cCSAus listed;

Technical Specifications:

  • Model Number: VCMX-20ULST;
  • Horsepower: 1/30HP;
  • Tank: Medium;
  • Flow: 84 GPH @ 1';
  • Cord Length: 6';
  • Shut Off: 21';
  • Voltage: 115V;
  • Check Valve: 3/8", 1/4-Turn;
  • Hertz: 60Hz;
  • Amps: 1.5A;
  • Watts: 93W;
  • Weight: 6 lbs;
  • Height: 6.5";
  • Width: 4.8";
  • Length: 10.2";


2 years from the date of installation.
VCMX-20ULST Automatic Condensate Pump w/ Safety Switch, Tubing and 6' cord, 1/30 HP, 115V has an average 5.0 out of 5 rating based on 1 user review.
Little Giant Condensate Removal Pump
By Pepper (from Big Rapids, MI) on 3/28/2012
Arrived promptly, installed easily and seems to be working as it should
