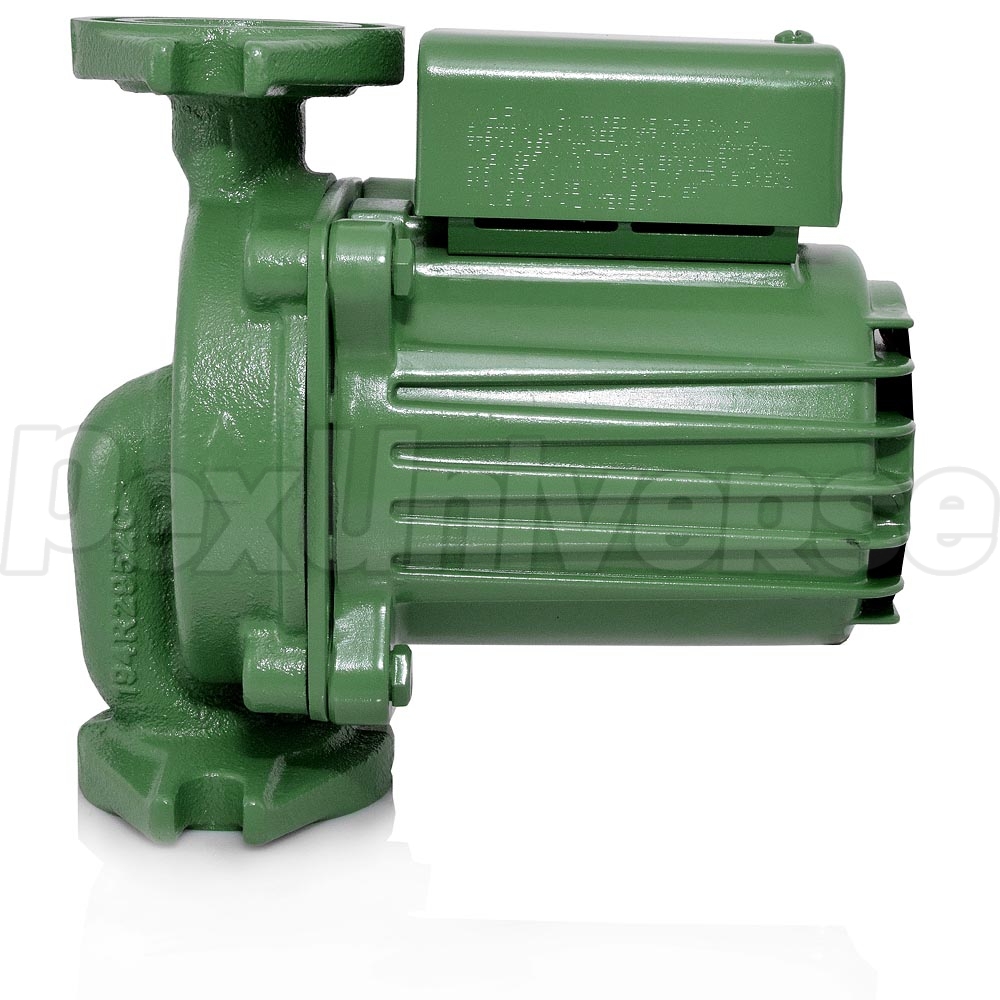

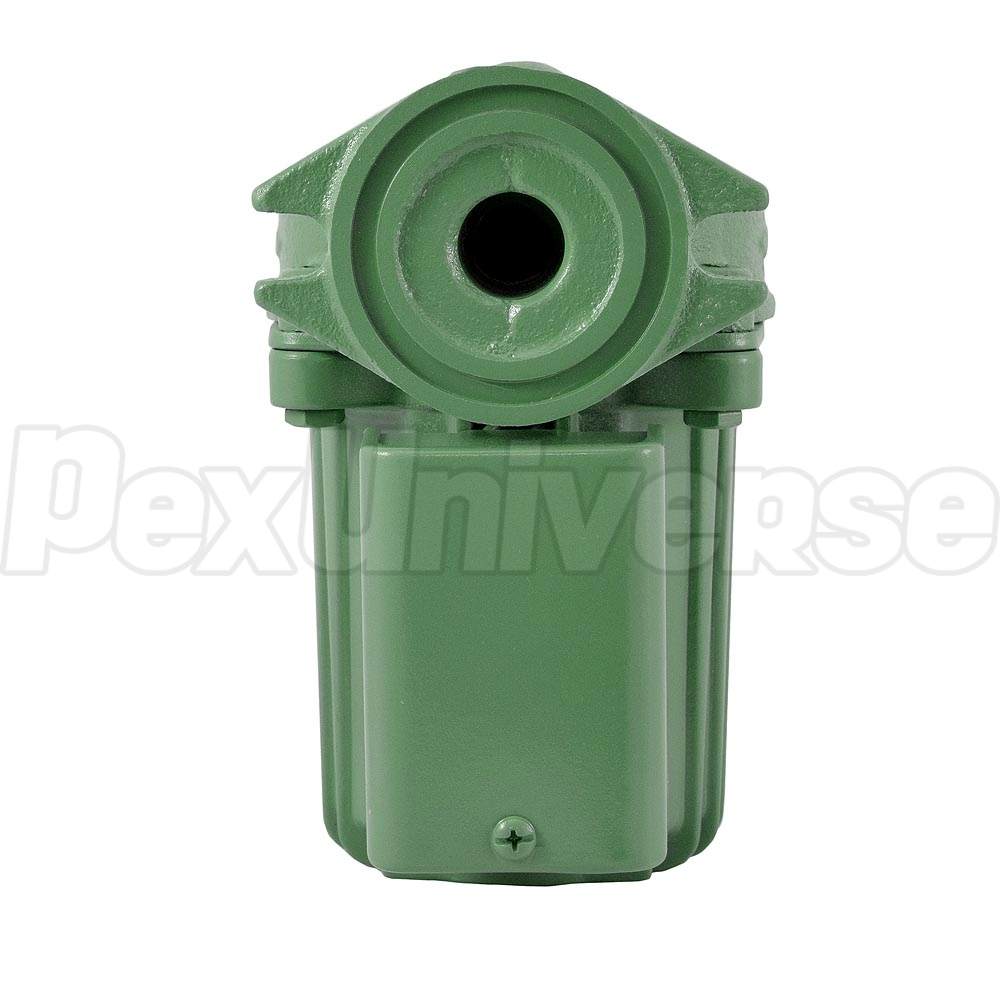

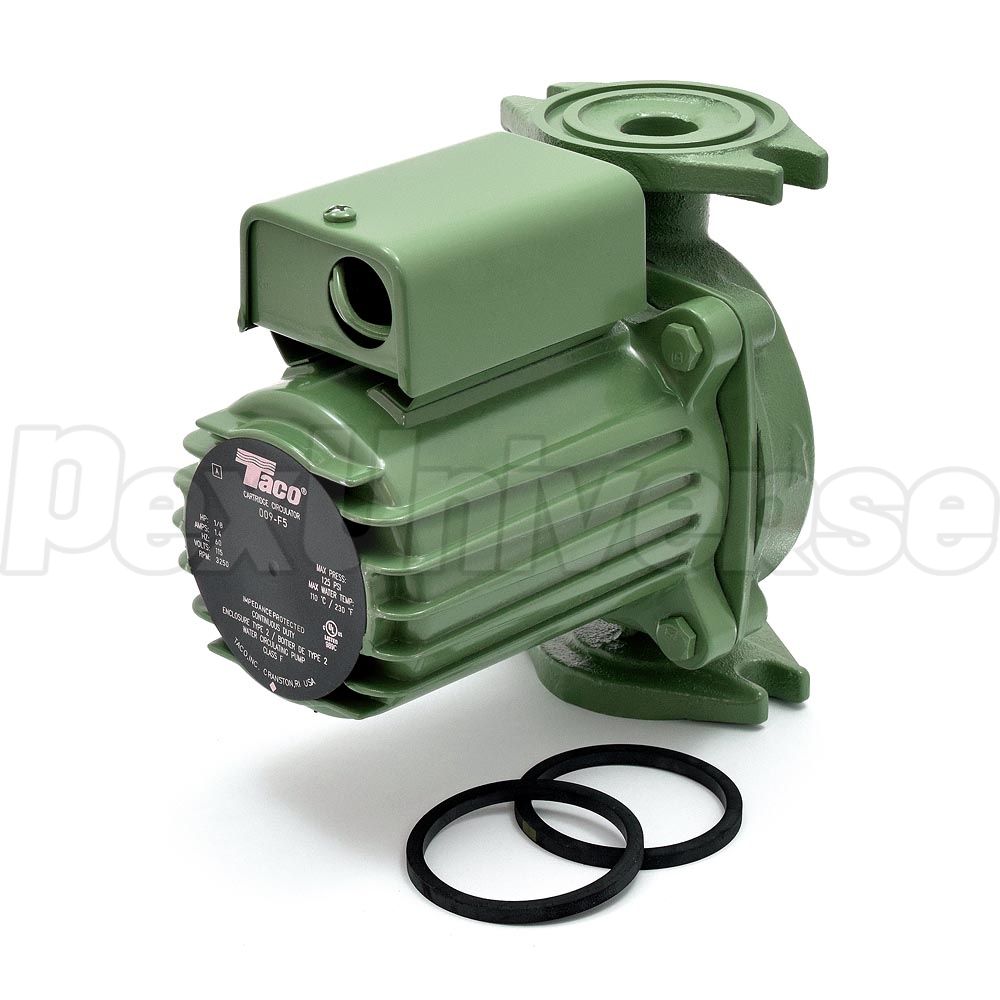

009 Circulator Pump, 1/8 HP, 115V

The High Velocity series Taco 009-F5 Circulator Pump is designed for use in high head and low flow applications in hydronic heating and radiant heating. Features a field-serviceable cartridge which allows to replace the cartrigde without replacing the entire circulator. The Taco 009-F5 maintenance free design provides unmatched reliability.

Taco 009-F5 replaces:

Grundfos UP15-100,

Armstrong Astro70 and

Wilo Star 32.

Applications:
• Hydronic Heating/Cooling
• Radiant Heating

• Applications with High Pressure Drop (High Head)
• Wood Boilers / Furnaces
• Hydro-Air Fan Coils

• And others

Electrical Data:
Voltage: 115V;

Hertz: 60Hz;

Phase: 1;

Amps: 1.40A;

HP: 1/8HP;

Technical Specifications:

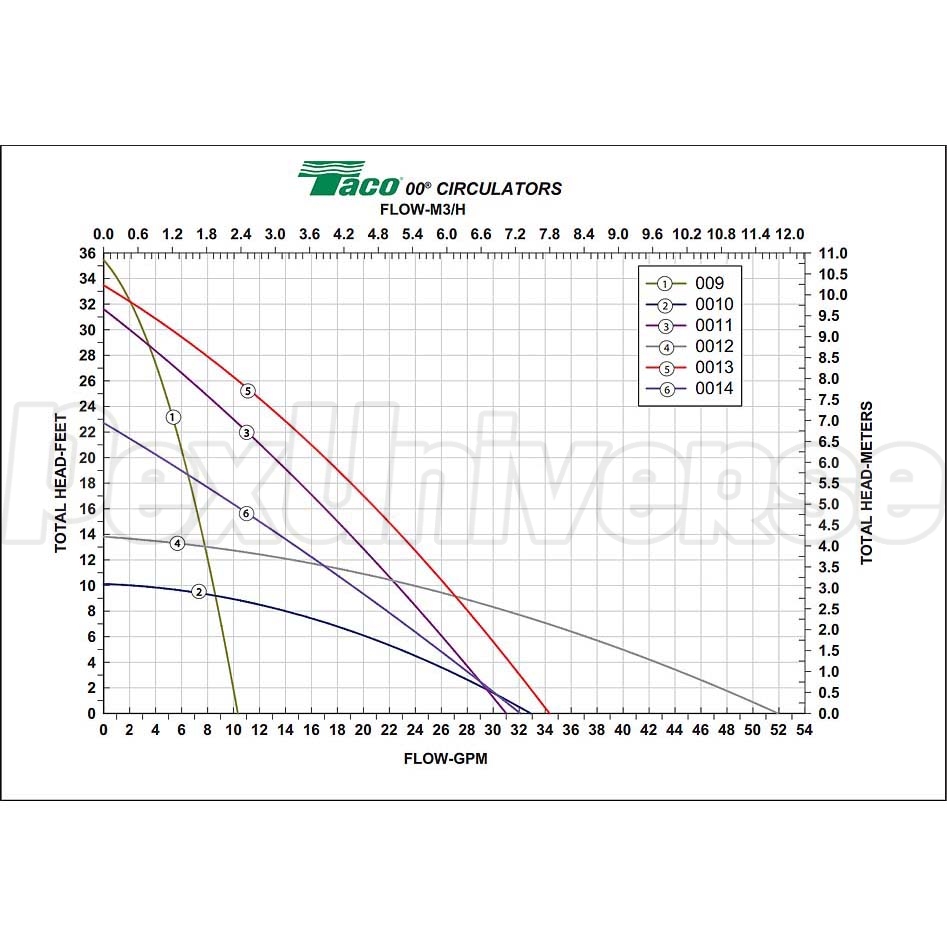

• Flow Range: 0 – 10 GPM;
• Head Range: 0 – 35 Feet;
• Minimum Fluid Temperature: 40˚F (4˚C);
• Maximum Fluid Temperature: 230°F (110˚C);
• Maximum Working Pressure: 125 psi;
• Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged
