3/4" Sweat Zone Sentry Zone Valve, 3-Way, Normally Closed
Brand: Taco
Part#: Z075C3-1

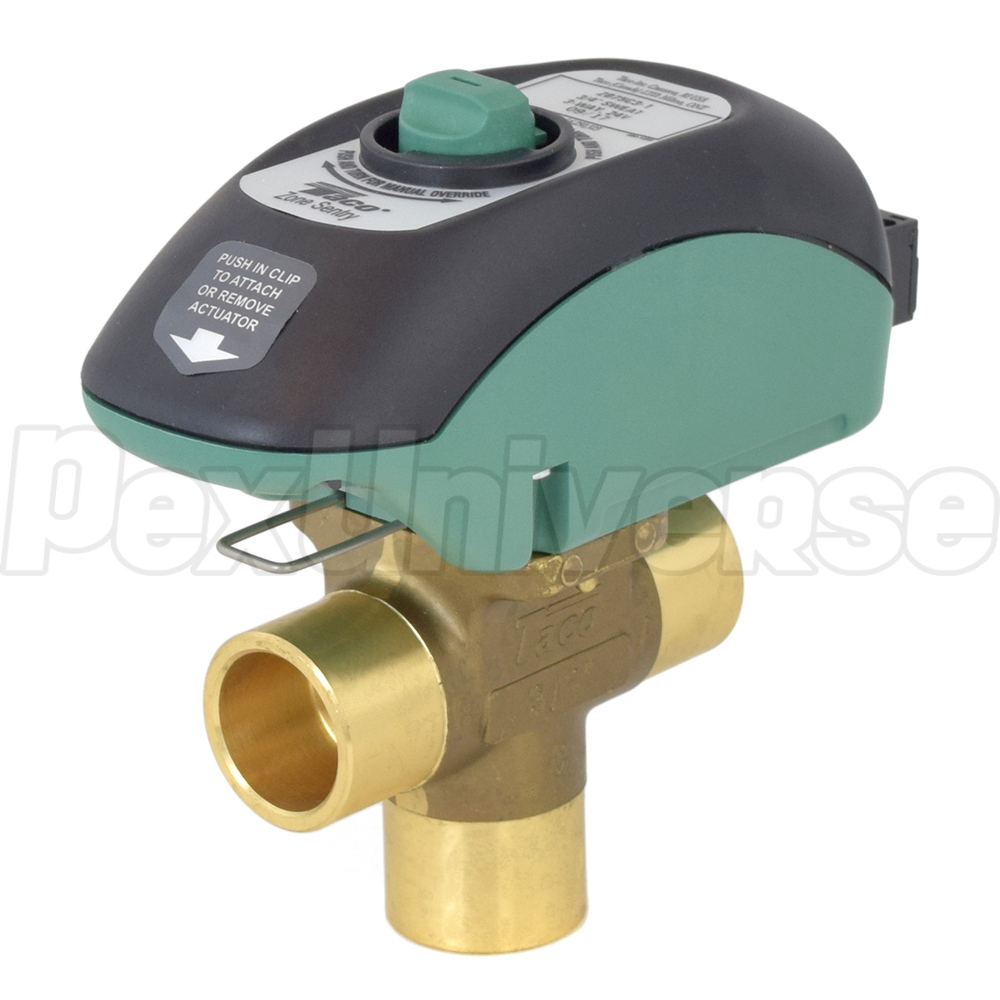

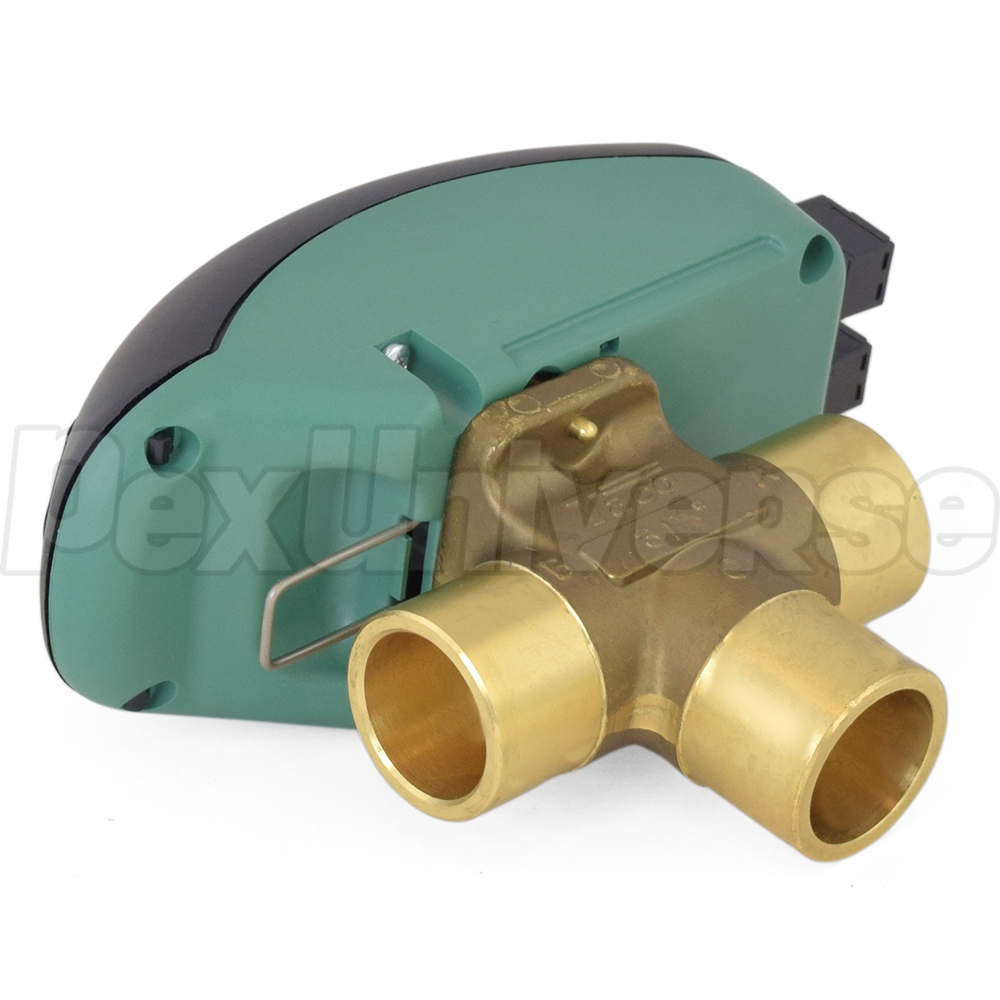

Taco Z075C3 is a 3-way, motorized Zone Sentry series zone valve with 3/4" Sweat connections.

Features:
  • Sentry zone valve series is a market leader in efficiency, durability, ease of installation, pressure and flow characteristics
  • For use in radiant, baseboard, fan coil, heat pump, air handlers and convector applications
  • Valve can be installed in any direction
  • Actuator can be mounted in either direction, simplifying installation in tight spaces

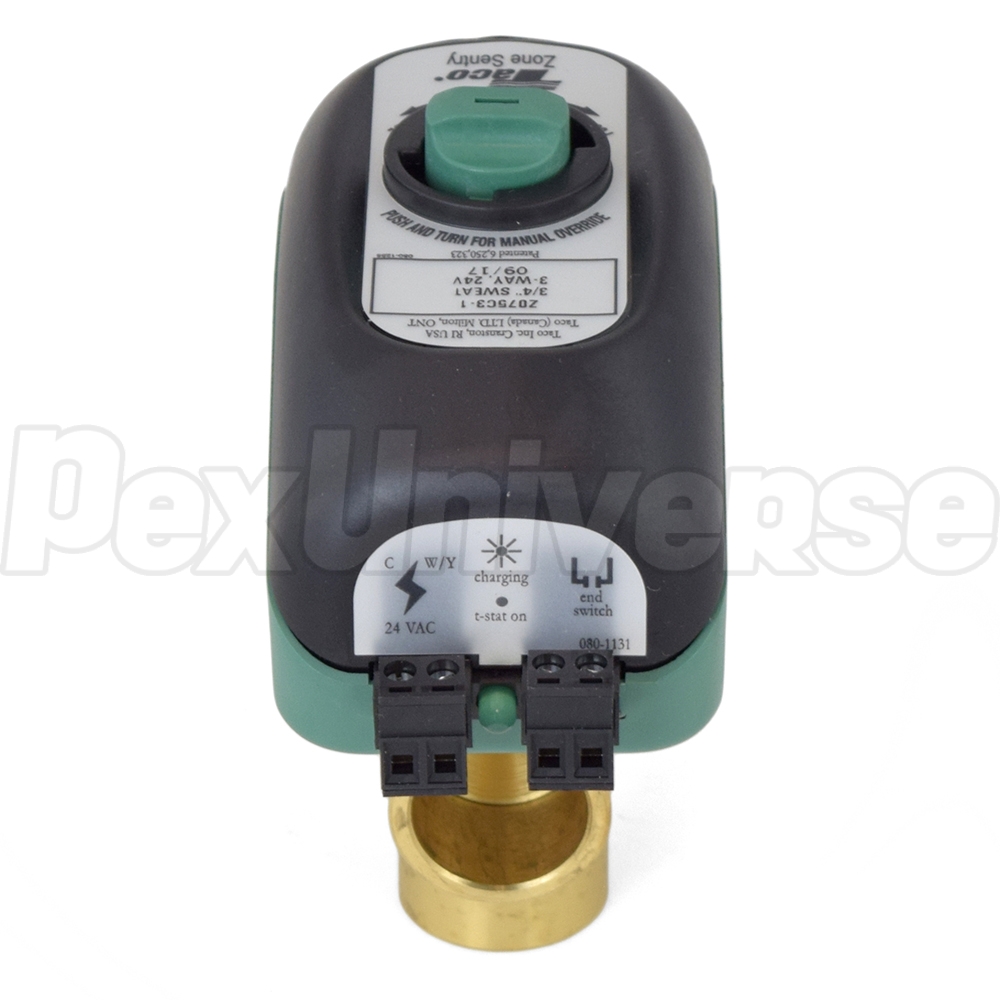

  • Terminal block connections allow to quick and easy wiring hookup

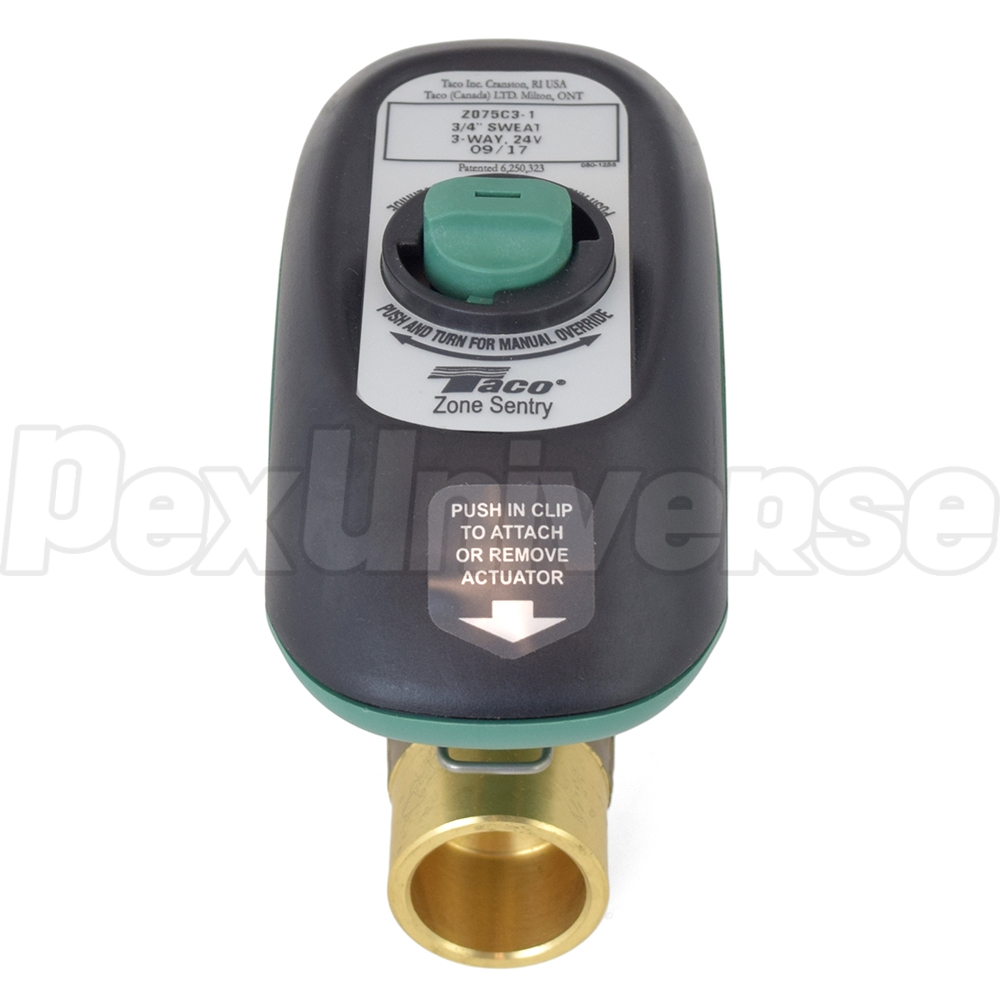

  • Manual override button
  • LED status indicator.

Technical Specifications:
  • Connections: 3/4" Sweat
  • Valve Default Position: Normally Closed
  • Max Operating Pressure: 300 psi
  • Max Shut off Pressure: 125 psi
  • Max Ambient Temperature: 135°F
  • Fluid Temperature Range: 20 - 220°F
  • Electrical Rating: 24 VAC, 60 Hz, 0.48 Amps
  • Power Consumption (charging): 11.4W, 0.48 Amps
  • Power Consumption (Power On): 1.44W, 0.06 Amps
  • Heat Anticipator Setting: 0.5 Amps
  • End Switch Rating: 1 Amp @ 24 VAC.
