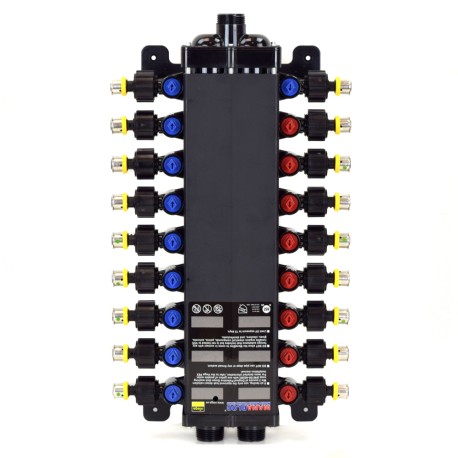

18-Port, 1/2" PEX Press ManaBloc Manifold, (8) Hot, (10) Cold Viega

18-Port, 1/2" PEX Press ManaBloc Manifold, (8) Hot, (10) Cold

Brand: Viega

Part#: 49183

This product has been discontinued.

Direct Replacement:

SKU: 49615

Brand: Viega

Description

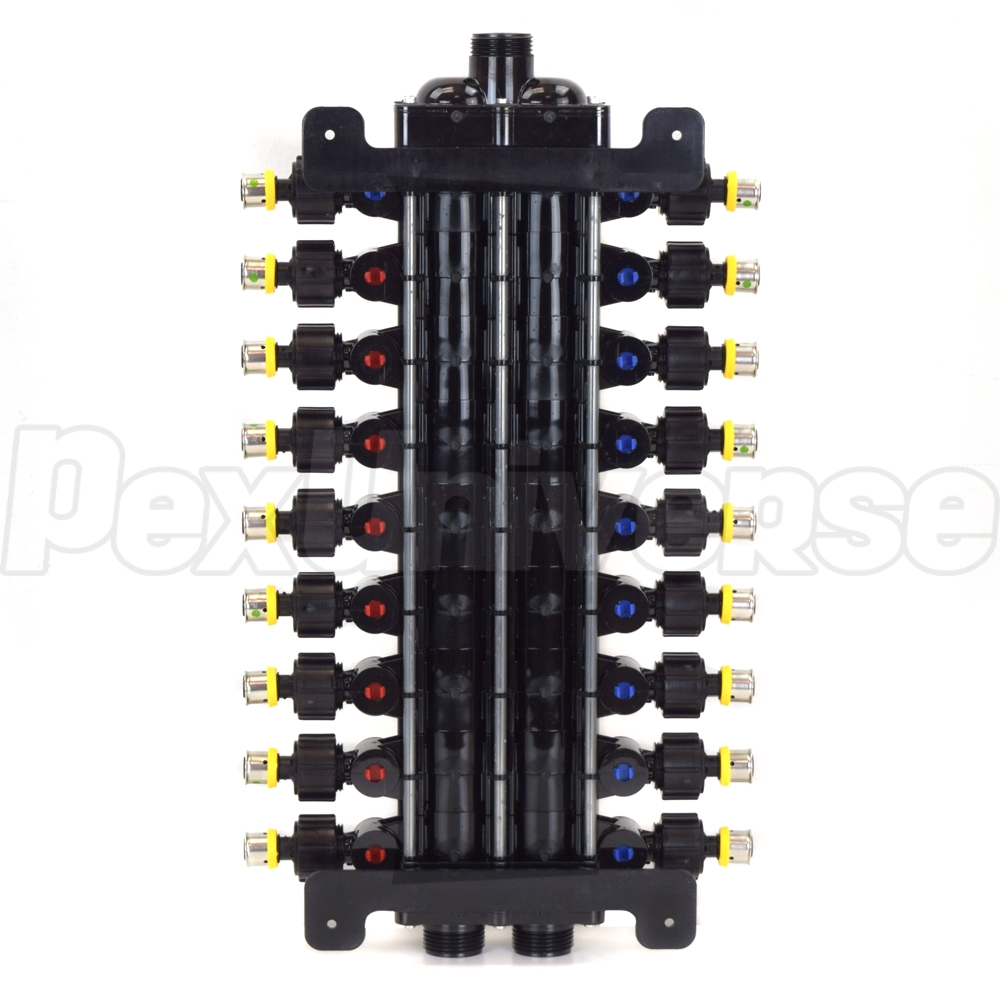

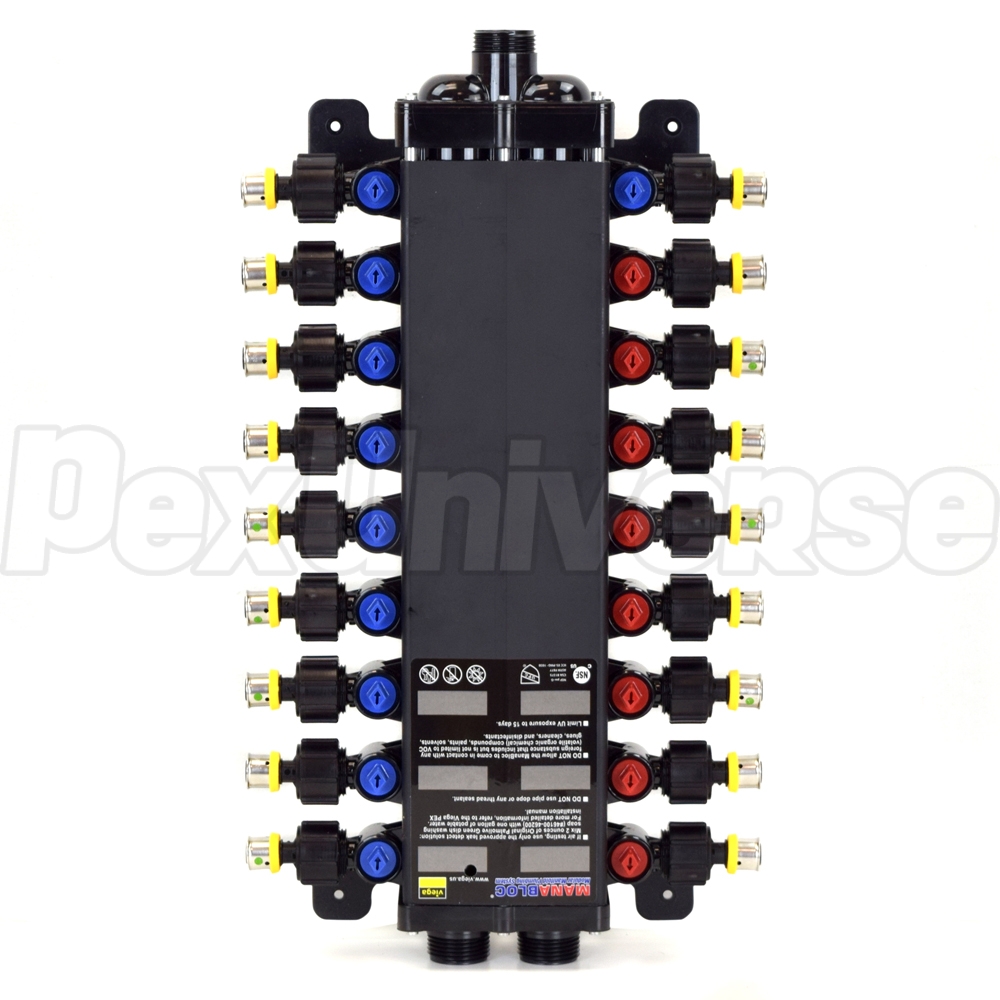

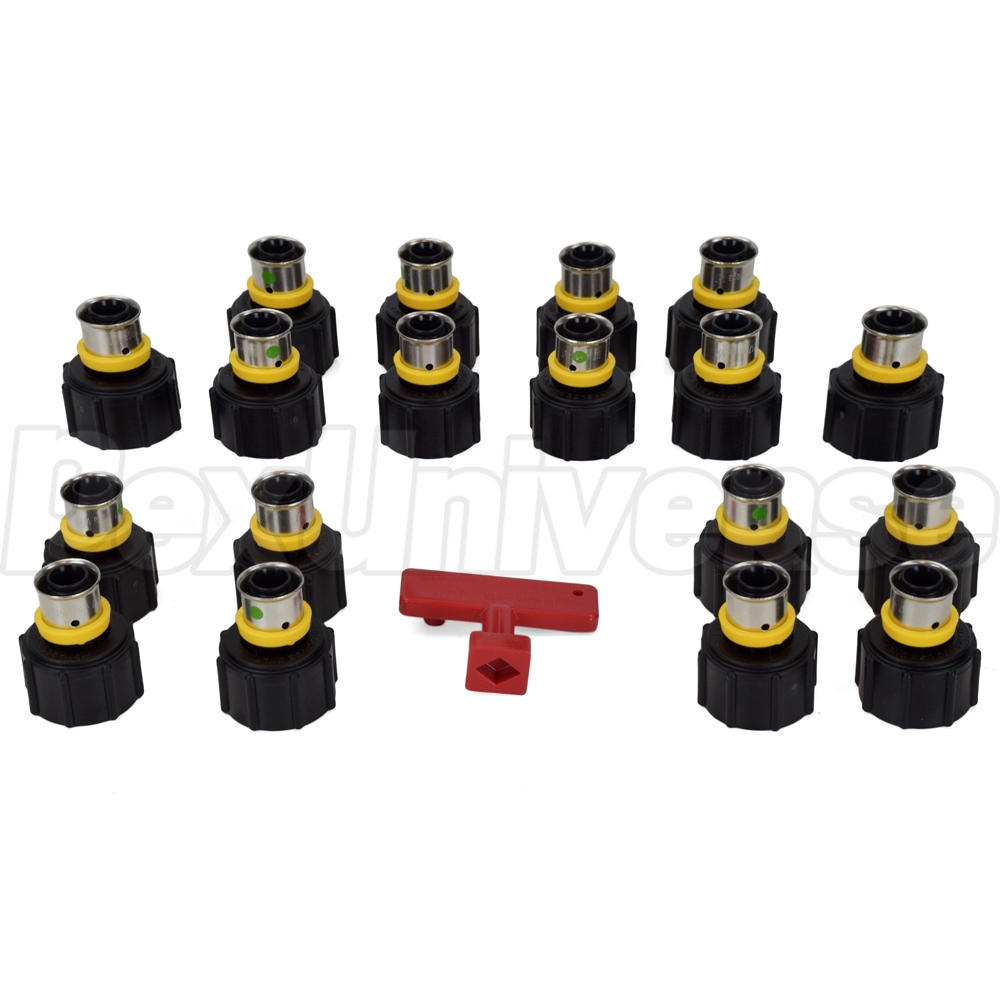

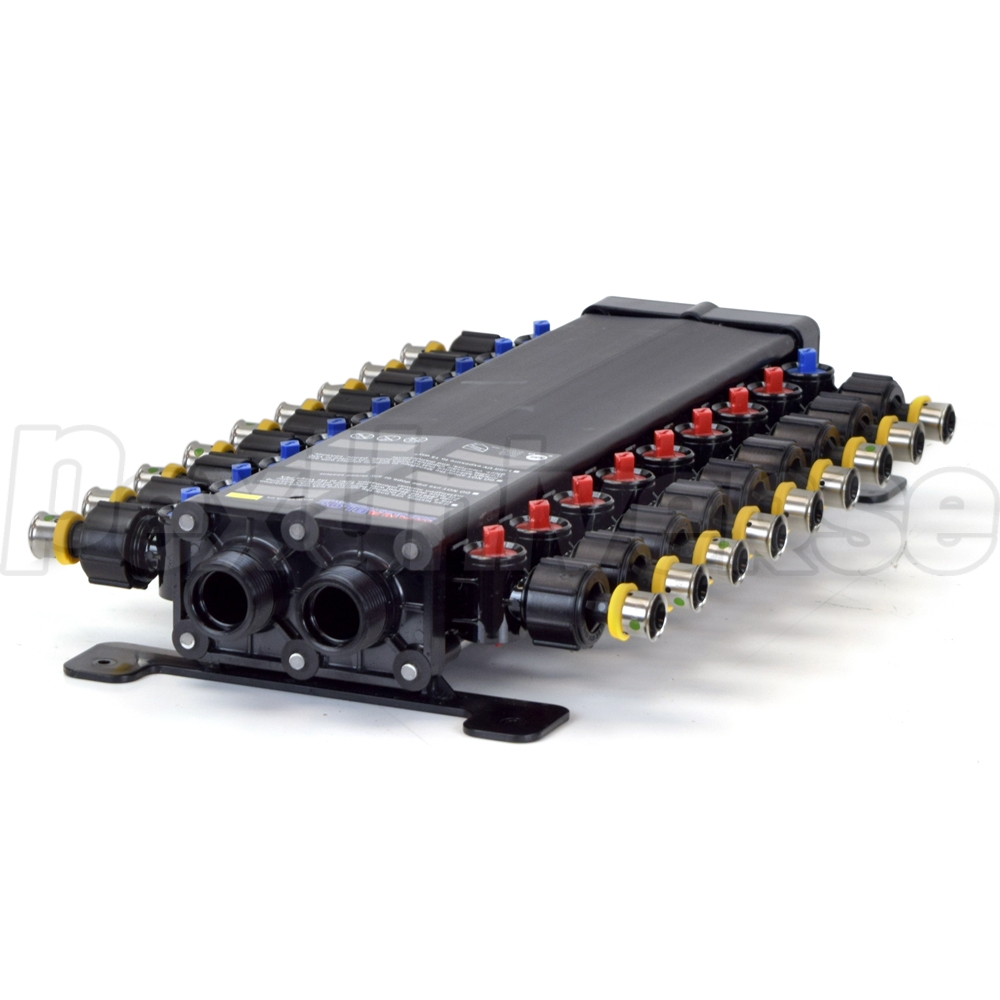

Viega ManaBloc manifold with (18) 1/2" PEX Press ports - (8) Hot and (10) Cold. Intended for use with ViegaPEX Ultra (Potable/Non-barrier) and Viega FostaPEX tubing and connection methods. Also compatible with all other types (A, B, C) and brands of PEX tubing. Each port (branch) is equipped with a built-in 1/4 turn shut-off valve for individual fixture control. Includes PEX adapters for all ports (branches) and Valve Key.
NOTE: Supply adapters (which connect the main hot & cold pipe lines to the ManaBloc) are not included and must be purchased separately. Accessories (supply end caps, port caps, brackets, etc.) are sold separately.

Technical Specifications:

Total Ports (Branches): 18 (8 Hot & 10 Cold)
Port Connections: 1/2" PEX Press
Hot/Cold Water Inlet Connections: 1" (manabloc adapters required)
Branch spacing: 1-11/16" OC (On Center)
Dimensions (L x H x W): 18-13/16" x 3" x 8"
Max Pressure Rating: 100 psi @ 180°F
Port (Branch) Pressure Drop: 3.4 psi @ 4.0 GPM
Port K-Factor: 0.21 (for 1/2" PEX)
Lead-free, approved for potable water use
Meets NSF/ANSI 61 & 372, ASTM F876/F877, CSA B137.5
UPC-IAPMO Certified
Made in the USA.

Warranty:
10-year
