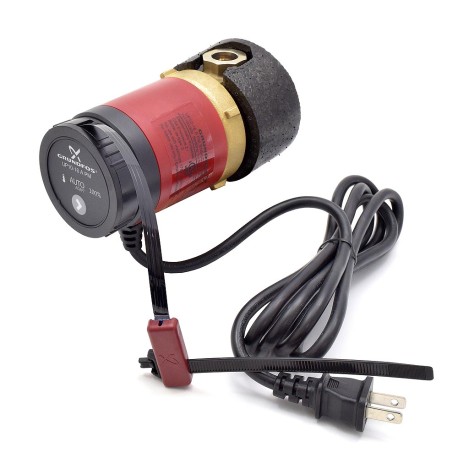

UP10-16APMB5/LC Comfort Pump, AUTOAdapt & Line Cord, 1/2" Sweat, 115/208-230V
Brand: Grundfos
Part#: 98420222
In Stock
Usually ships: within 1 business days

The Grundfos Comfort UP 10-16 PM Auto range sets new standards for energy-efficient hot water recirculation in residential homes. Thanks to a low noise permanent magnet motor, energy consumption is reduced to as little as 5-8.5 W. Utilizing AUTOADAPT ensures the pump only runs when required, so the result is maximum comfort with lower wait times for hot water as well as reducing water and electrical waste.

  • Easy installation
  • Minimize water waste
  • Lower energy consumption
  • Learns and adapts to homeowner’s water temperature needs.
Read more

Technical Specifications:
  • Connection: 1/2" Sweat
  • Flow Range: 0-2.2 GPM (0-0.5 m³/h)
  • Head Range: 0-3.9 ft (0-1.2 m)
  • Phase: 1
  • Housing: EcoBrass
  • Maximum Liquid Temperature: 185°F (85°C)
  • Minimum Liquid Temperature: 36° (2°C)
  • Maximum System Pressure: 145 psi (10 bar)
  • Voltage: 115/208-230V
  • Amperage: 0.23 Amps
  • Power: 5-8.5 Watts.
Read more
Ask a Question
Do I need to use a check valve with this pump?
Helpful? Yes 1 No
To ensure proper operation, thus particular model needs an in-line check valve.
By PexUniverse Customer Service on 03/31/2015
Is this pump available with 3/4" IN/OUT?
Helpful? Yes No
Model UP10-16APMBU/LC (part# 98420224) has union connections which can be used together with #529911 (3/4" sweat) or #529912 (3/4" threaded) unions.
By PexUniverse Customer Service on 01/11/2018
