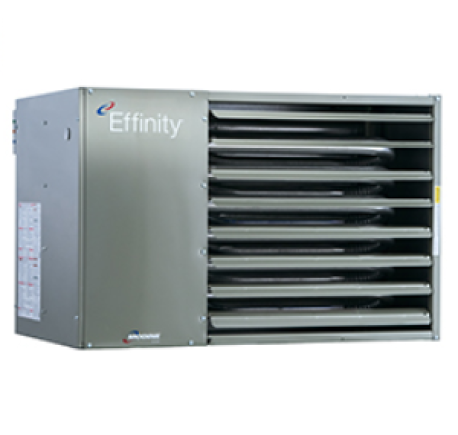

PTC85 Effinity 93 High Efficiency Condensing Unit Heater, NG - 85,000 BTU
Brand: Modine
Part#: PTC85AS0111FBAN
Model: PTC85
Usually ships: within 7-10 business days
Modine PTC Effinity 93 series are high-efficiency (up to 93%) condensing unit heaters with sealed combustion design (draws 100% of combustion air from outside). PTC heaters offer an optimal combination of energy efficiency, low profile and powerful output, especially well suited for dusty or humid environments in residential and commercial settings, including garages, workshops, storage spaces and many others.
NOTE: can be converted to propane gas using #65946 kit.

Technical Specifications:
  • BTU/hr Input: 85,000
  • BTU/hr Output: 79,050
  • Fuel Type: Natural Gas
  • Gas Connection: 1/2"
  • Supply Voltage: 115V, 1-Phase
  • Igninion Type: Direct Spark, 1-Stage
  • Vent Size: 3" (Combustion Air Inlet) , 3" (Flue Exhaust Outlet)
  • Thermal Efficiency: 93%
  • Condensate Production (Gal./Hr.): 0.5
  • Entering Airflow (CFM) @ 70°F: 1650
  • Air Temperature Rise (°F): 44
  • Heat Throw (ft.): @ Max Mounting Height: 48
  • Maximum Mounting Height: 13ft
  • Heat Exchanger Type: Primary - Aluminized Steel, Secondary (Condensing) - Stainless Steel
  • Approx. Weight: 125 lbs
  • Dimensions (D x W x H): 33.83" x 35.53" x 20.31"

Read more

Warranty:
10 years for both heat exchangers, 2 years for parts
