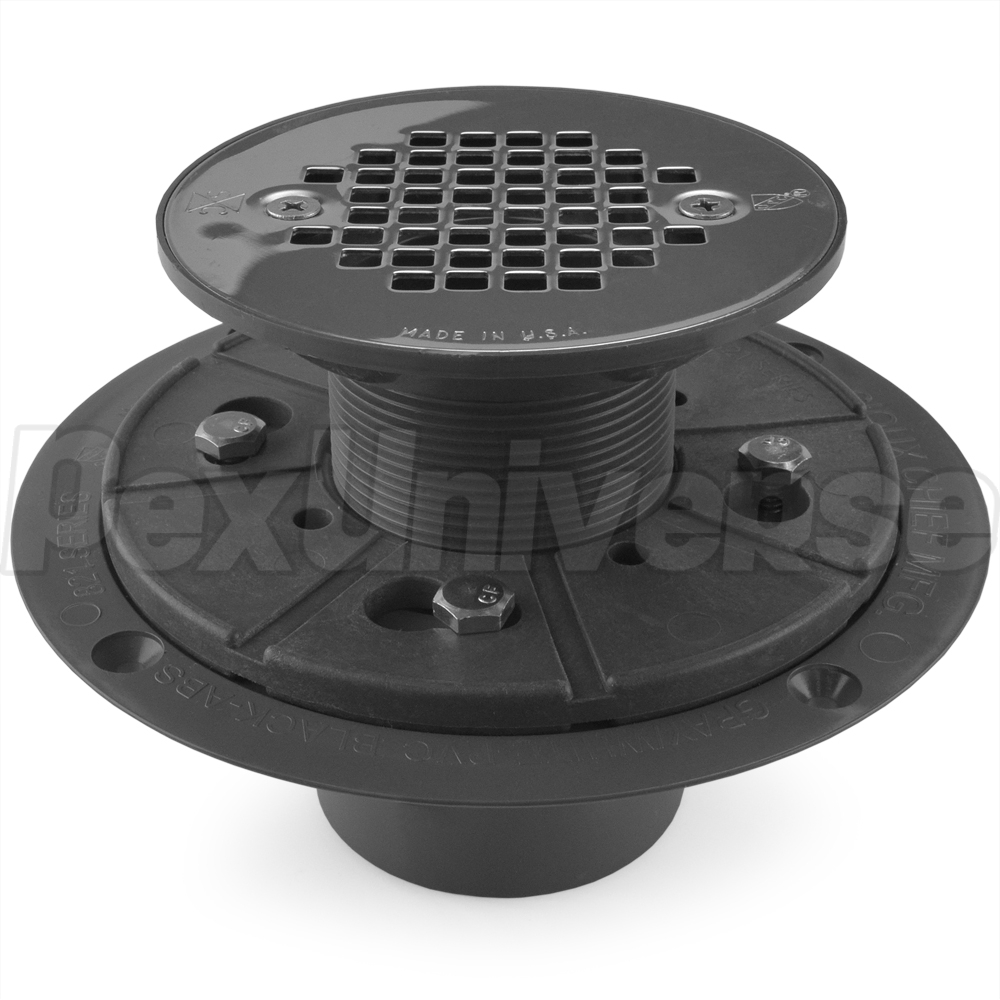

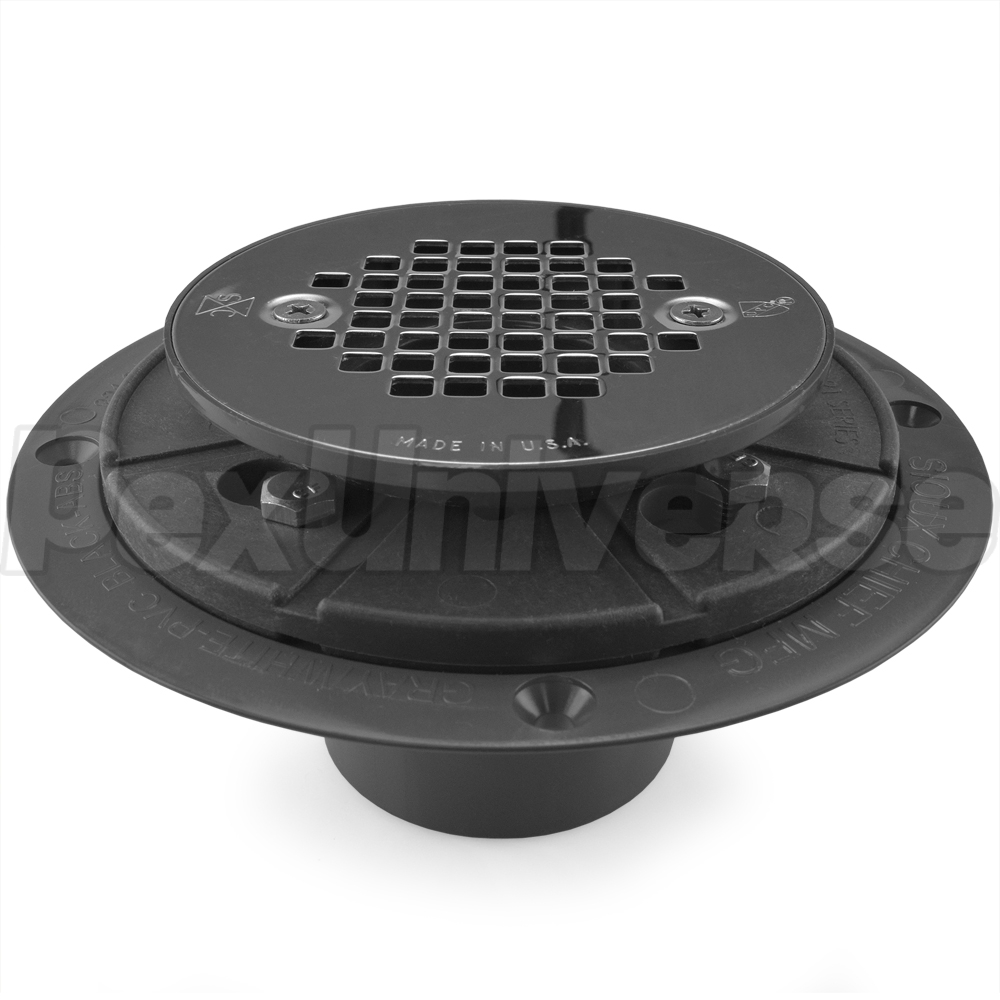

Round Tile-in PVC Shower Pan Drain w/ Screw-on 19-Gauge St. Steel Strainer, 2" Hub x 3" Inside Fit

Sioux Chief

Brand: Sioux Chief

Mfr Part#: 821-T200P

Availability: Out Of Stock
Usually ships: Upon availability
Qty Price
x1
$6.40 / each
x10 $60.00
(10 x $6.00 / each)
  • Description
  • Literature
  • Reviews
  • FAQs (2)




Features:

  • Brass inserts in drain head adapter for machine screws;
  • Drain head accepts both snap-in and screw-on types strainers, whether solid cast metal or stamped steel;
  • Compatible with 827-2RB, 827-2S, 827-2SP, 827-2SN, 821-2RB, 821-2S, 821-2SP, 825-2SN replacement strainers models;

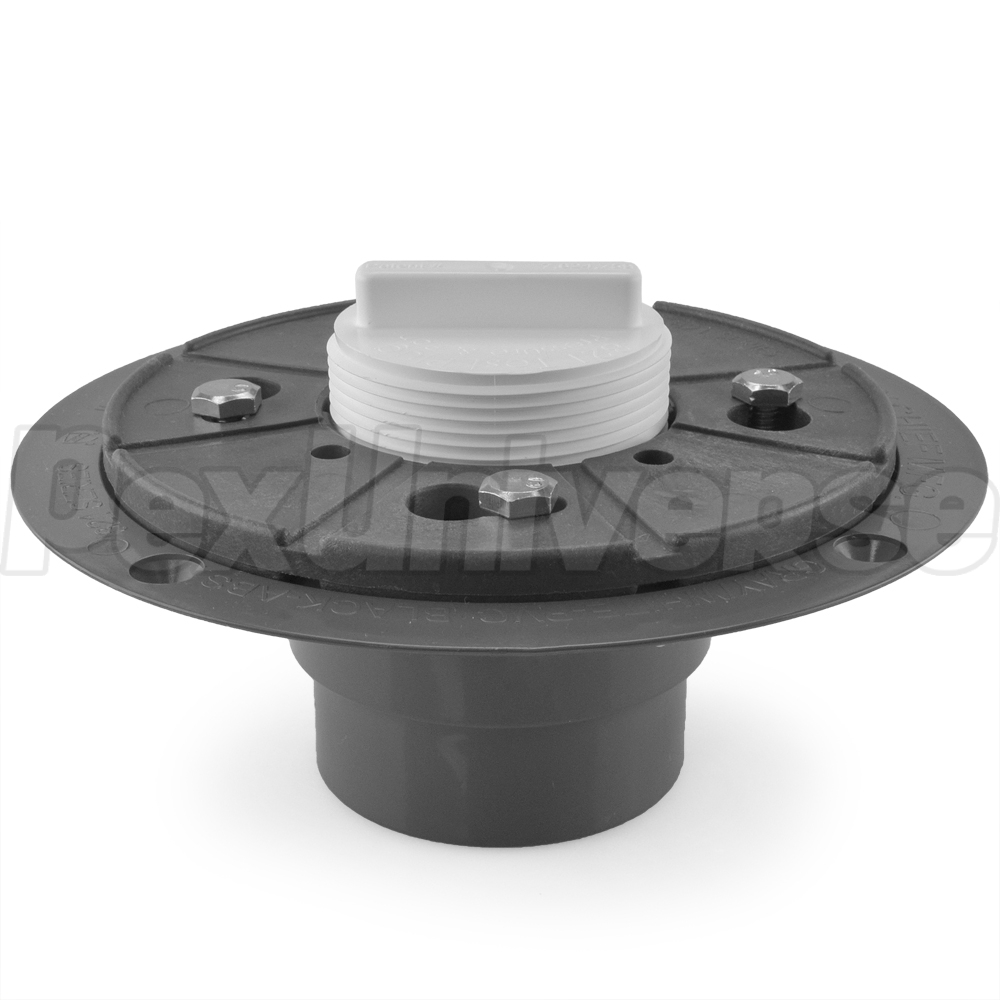

  • Includes free Double Duty test plug for DWV pressure test and shower pan water test. Holds 5 lb. air or water test;
  • Plug can also be used to prevent debris from falling down the drain during installation;
  • Beveled drain body and mounting holes for easy subfloor installation;
  • No blow-up balls, glue-in wafers or mechanical plugs needed;
  • Designed in accordance to ASME A112.18.2-2005 / CSA B125.2-05;
  • cUPC Listed;
  • Made in the USA.

Technical Specifications:

  • Connection: 2" Hub (fits over 2" Sch. 40 or 80 PVC pipe) or 3" Inside Fit (fits inside 3" SCH40 PVC pipe);
  • Strainer load ratings: 300 lbs;
  • Strainer flow capacity: 7.02 GPM;
  • Overall height: 3-1/2" - 5-1/2" (adjustable for up to 2" height);
  • Drain body height: 2-5/8";
  • Floor flange diameter: 6-5/8";

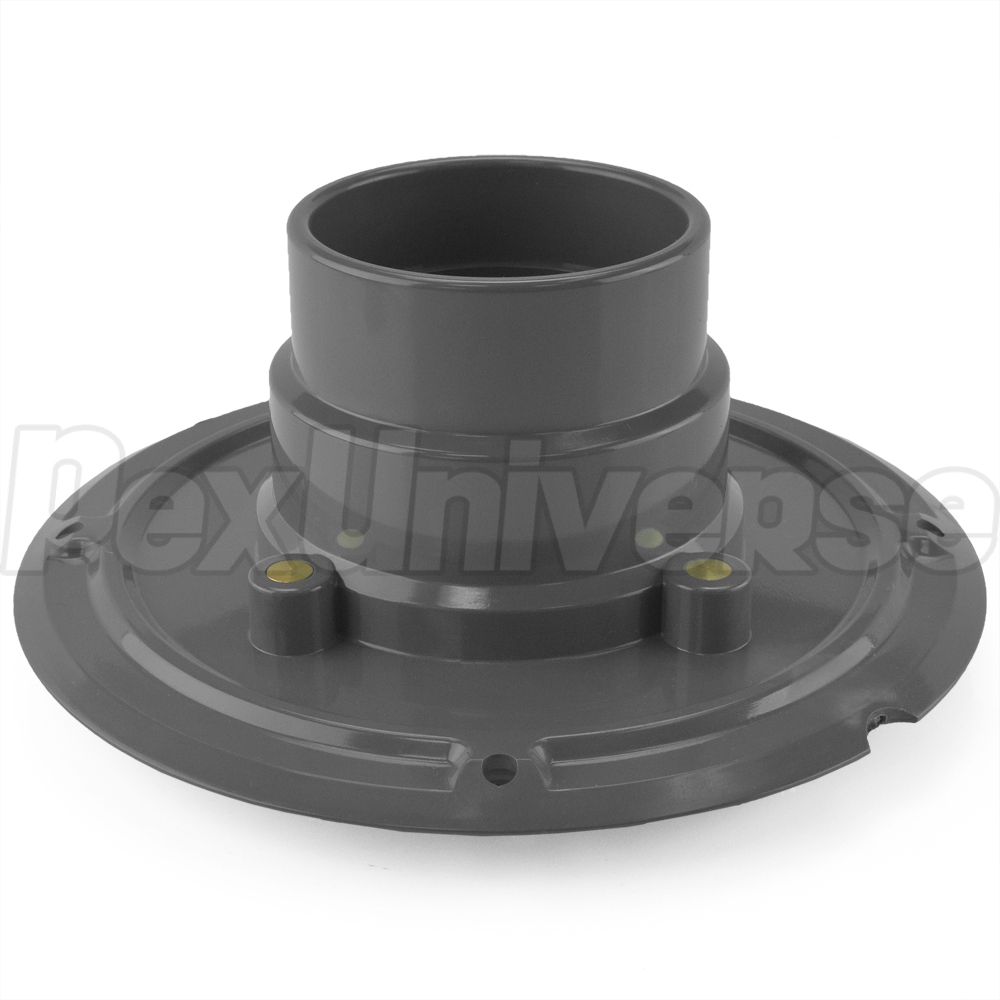

  • Base adapter material: PVC;

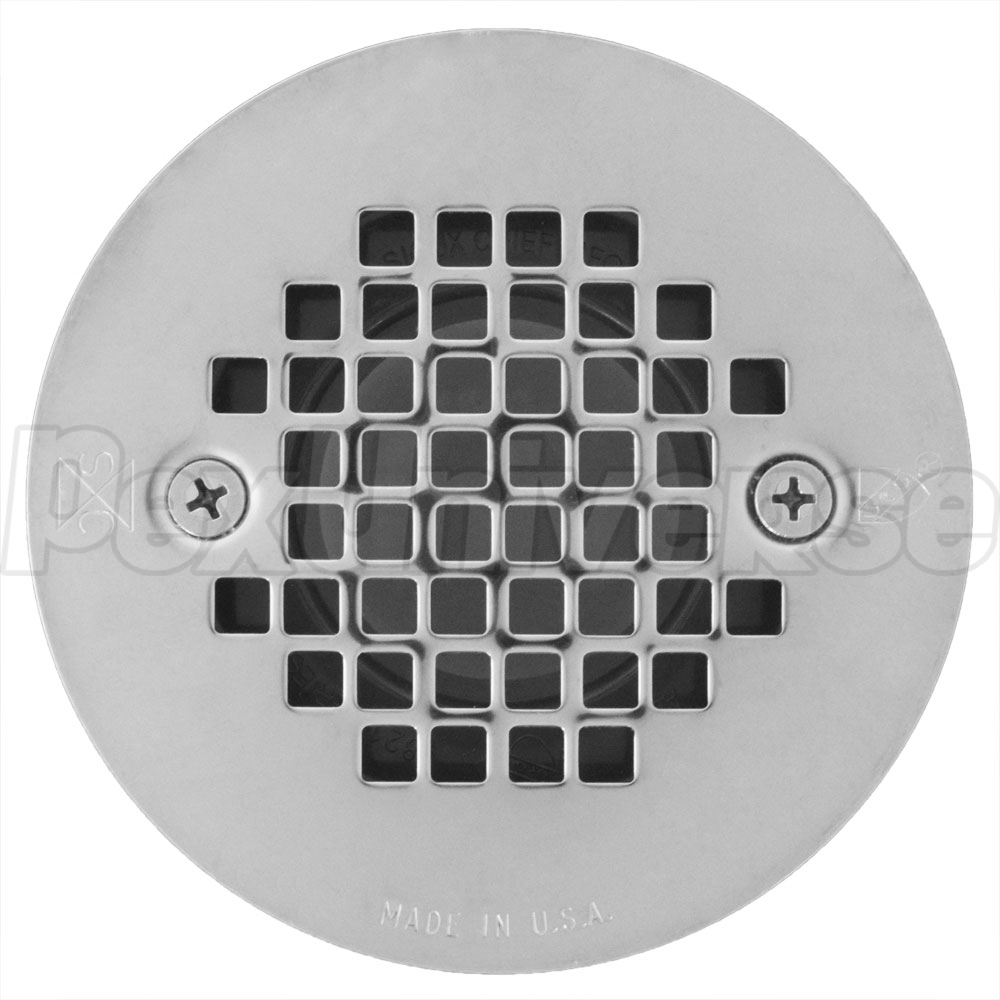

  • Strainer material: 19-gauge stainless steel;
  • Strainer finish: Polished Steel;
  • Strainer shape: Round;
  • Strainer diameter: 4-1/4";
  • Strainer type: Screw-on;
  • Screw Center: 2-5/8";
  • Rim material: PVC (grey color);
  • Head adapter material: ABS;
  • Head adapter connection: 2" MIP.
No reviews yet
Indicate an email address where you wish to receive the answer to your question.
Image CAPTCHA
Enter numbers shown above without spaces. This step helps us to prevent automatic submissions.
does this come with an offset drain?
Read 1 answer
Offset option is not available for this drain. You can look at various PVC fittings to create a custom offset.
Answered on 10/6/2017 by PexUniverse Customer Service
Was this answer helpful?  Yes / No
Does this drain assembly require a pan liner when used in a concrete recess shower in a monolithic slab? Currently in between plumbing contractor and inspector onnthis issue and creating quite a few issues from a production stand point.
Read 1 answer
This shower drain is designed for use with pan liner as shown in the installation manual (see "Literature" tab).
Answered on 4/21/2017 by PexUniverse Customer Service
Was this answer helpful?  Yes / No
