6-Zone Valve Control w/ Priority, Expandable


Brand: Taco

Mfr Part#: ZVC406-EXP-4

UPC#: 687752252668

Availability: In Stock
Usually ships: Today, if ordered by 3pm
Qty Price
$178.95 / each & Free Shipping
x2 $343.90 & Free Shipping
(2 x $171.95 / each)
  • Description
  • Literature
  • Reviews (1)
  • FAQs

Taco ZVC406-EXP-4 is a 6-Zone Valve Control (Expandable up to 20 Zones). This model works with 2, 3 or 4-wire zone valves, is fully fuse protected and includes two isolated end switches and a built-in priority switch. The easy to read PC board layout of the Taco ZVC406-EXP model eliminates problems with incorrect wiring and the “unfinished” look of conventional zone valve installations. The sturdy screw connections add additional reliability, while the external indicator lights provide instant diagnostic feedback, reducing installation time.
All Taco ZVC406-EXP Zone Valve Controls are made in the USA, UL and CSA listed.


  • External Indicator Lights;
  • Switchable Priority;
  • Simplified Wiring;
  • Works with 2, 3, or 4-Wire Zone Valves;
  • Compact Design;
  • Fuse Protected;
  • 100% Factory Tested;
  • Two Isolated End Switches;
  • Extra Set of Dry Contacts;

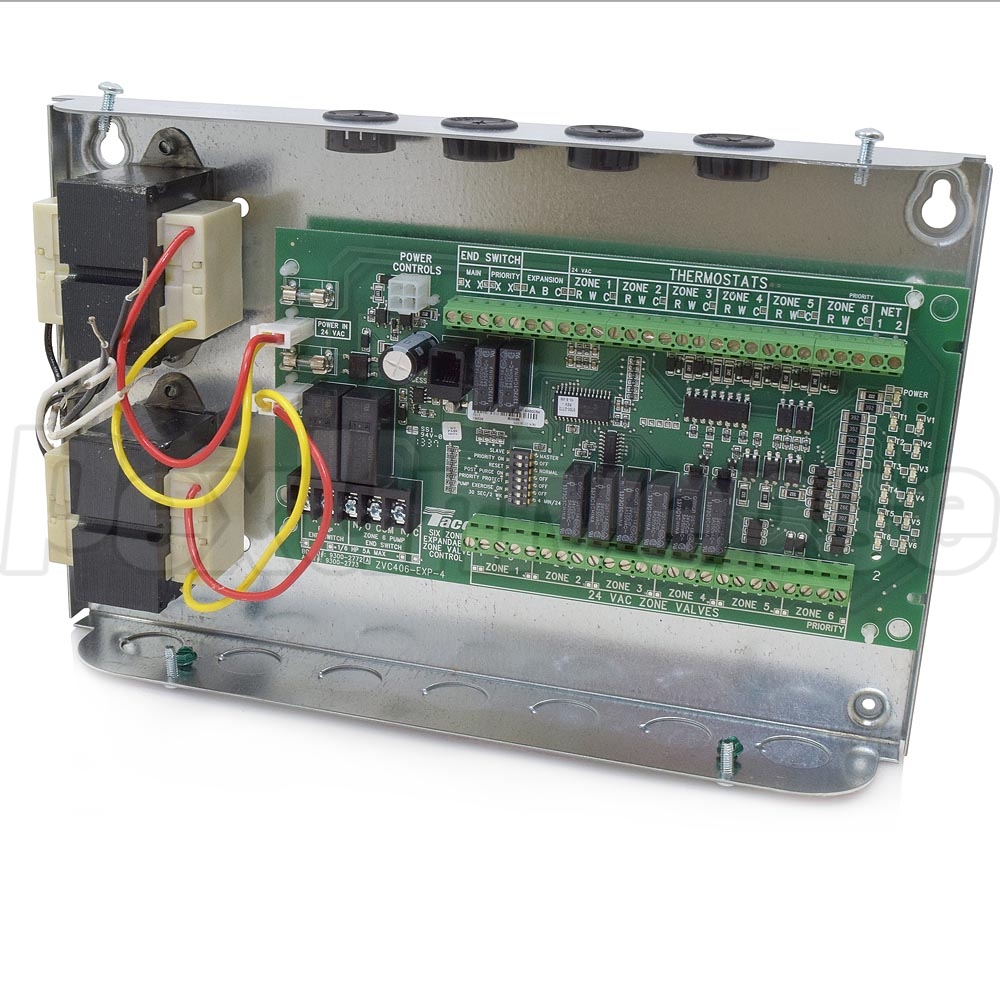

  • Contractor Friendly PC Board Layout;
  • Universal Thermostat Compatibility;
  • UL and CSA Approved;
  • Sturdy Screw Connections;
  • Extended 3 Year Warranty;
  • Made in the USA;
  • Expandable to 20 Zones;
  • Interface with -EXP Switching Relays;

Technical Specifications:

  • Zones: 6 (expandable up to 20), plus Priority;
  • PowerPort Slots: 2;
  • Power Control Plugs: 1;
  • Power (Transformer Voltage): 120 VAC Input;
  • Transformer Rating: 80 VA;
  • Dimensions: 11-3/4" wide x 7-1/2" high x 3" deep;


3 year manufacturers warranty.
6-Zone Valve Control w/ Priority, Expandable has an average 5.0 out of 5 rating based on 1 user review.
7 of 7 people found this review helpful.
Taco ZVC406-EXP-2, 6 Zone Valve Control (Expandable) w/ Priority & Pow
By j-m Grebenc (from Broomfield Colorado) on 11/2/2012
The controller was just as advertized. It made a very tuff job easy. It. took me about 45 minutes to hook up boiler, thermostats, 6 actuator valves, two circulator pumps and main power. Easily lends itself to a very clean and professioinal look. They ship this thing in pretty much bomp proof packaging
