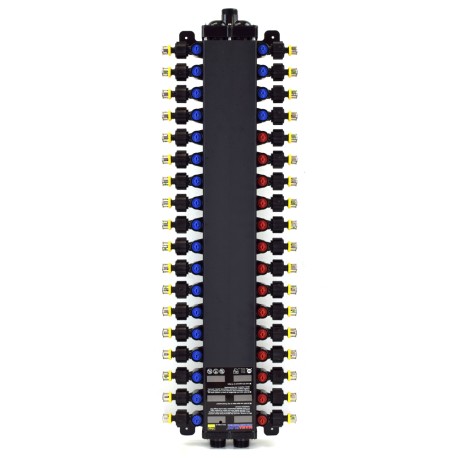

36-Port, PEX Press ManaBloc Manifold (3/8" PEX - (11) Hot & (15) Cold 1/2" PEX - (3) Hot & (7) Cold)

Viega

Brand: Viega

Mfr Part#: 49366

Usually ships: within 5-7 business days
Qty Price
$320.95 / each & Free Shipping
  • Description
  • Literature
  • Reviews
  • FAQs

Viega ManaBloc DUAL manifold with (36) PEX Press ports - including (11) Hot & (15) Cold for 3/8" PEX and (3) Hot & (7) Cold for 1/2" PEX. Intended for use with ViegaPEX Ultra (Potable/Non-barrier) and Viega FostaPEX tubing and connection methods. Also compatible with all other types (A, B, C) and brands of PEX tubing. Each port (branch) is equipped with a built-in 1/4 turn shut-off valve for individual fixture control. Includes PEX adapters for all ports (branches) and Valve Key.
NOTE: Supply adapters (which connect the main hot & cold pipe lines to the ManaBloc) are not included and must be purchased separately. Accessories (supply end caps, port caps, brackets, etc.) are sold separately.


Technical Specifications:

  • Total Ports (Branches): 18 (For 3/8" PEX - (11) Hot & (15) Cold; For 1/2" PEX - (3) Hot & (7) Cold);
  • Port Connections: 3/8" & 1/2" PEX Press;
  • Hot/Cold Water Inlet Connections: 1" (manabloc adapters required);
  • Branch spacing: 1-11/16" OC (On Center);
  • Dimensions (L x H x W): 33-15/16" x 3" x 8";
  • Max Pressure Rating: 100 psi @ 180°F;
  • Port (Branch) Pressure Drop: 3.4 psi @ 4.0 GPM (for 1/2" PEX); 2 psi @ 2.5 GPM (for 3/8" PEX);
  • Port K-Factor: 0.21 (for 1/2" PEX), 0.35 (for 3/8" PEX);
  • Lead-free, approved for potable water use;
  • Meets NSF/ANSI 61 & 372, ASTM F876/F877, CSA B137.5;
  • UPC-IAPMO Certified;
  • Made in the USA.

Warranty:

10-year
