Well-X-Trol WX-250 Well Tank (44.0 Gal Volume)
Brand: Amtrol
Part#: 145S1
Model: WX-250
In Stock
Usually ships: within 1 business days

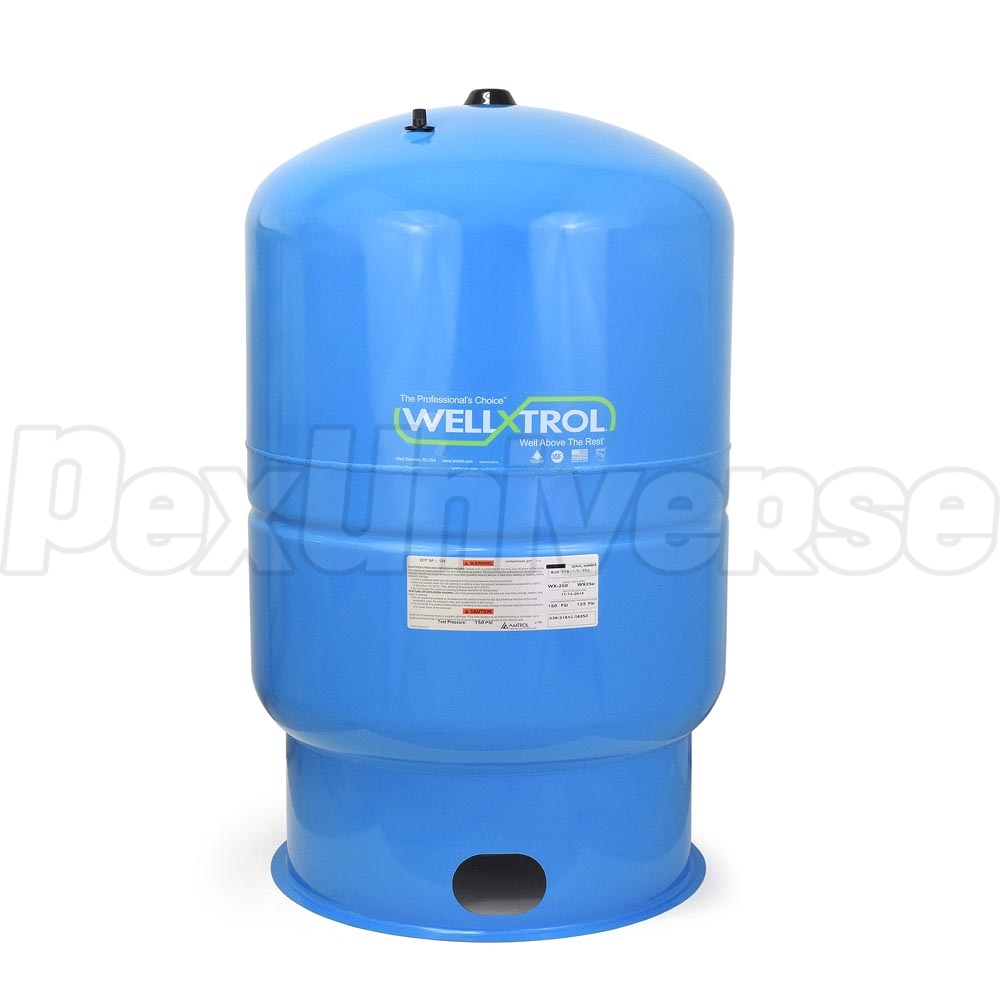

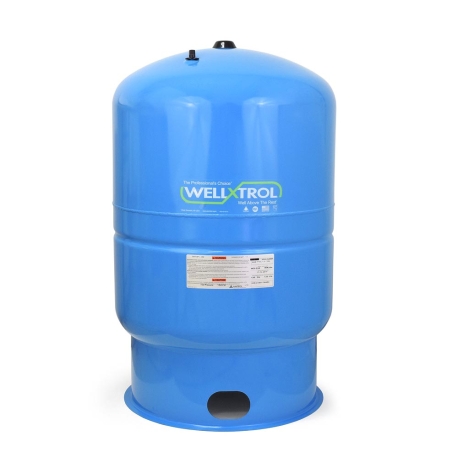

Amtrol WX-250 (145S1) Well-X-Trol is an Well Water System Pressure Tank (Stand Model) with 44 gallons volume and 1-1/4" female threaded system connection. Precharge Pressure for the WX-250 Well Water System Pressure Tank is 38 PSIG and the Maximum Working Pressure is 125 PSIG.

Heavy duty butyl diaphragm of the Amtrol WX-250 well pressure tank is the thickest in the industry and features seamless construction for uniform strength and flexibility. It conforms exactly to the shell configuration without stretching, creasing, or forming bubbles or corners that could trap water or sediment. Butyl is the best known elastomer to prevent air loss.

Heavy duty butyl diaphragm is extremely resistant to bacterial growth and meets FDA requirements for potable water supply.

Polypropylene liner provides a 100% corrosion resistant, non-metallic rigid water reservoir that is listed by NSF International Standard 61.

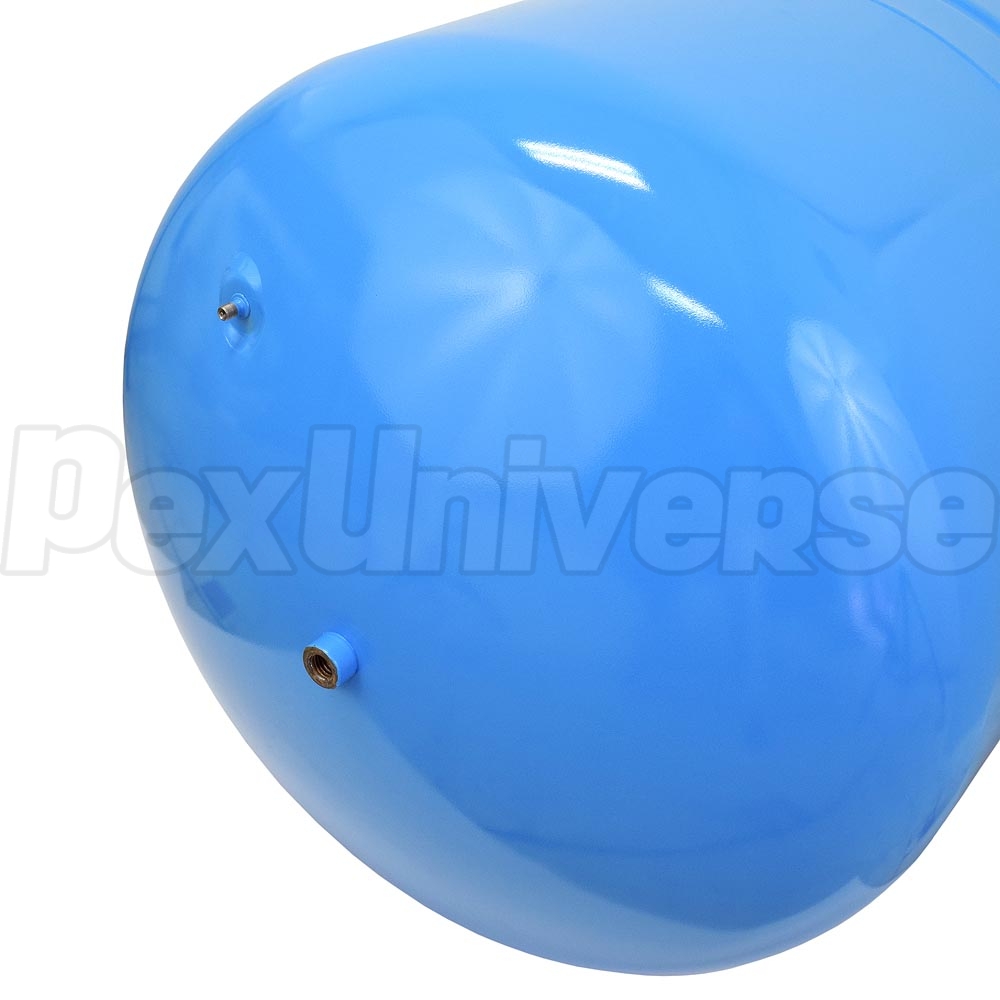

Welded air valve is permanently attached rather than mechanically threaded to prevent loss of air pressure and to minimize stress on the well's pump system. It also carries a tamper-evident warning label.

Exclusive welding process eliminates interior rough spots and sharp edges that can damage the diaphragm and liner.

Deep-drawn steel domes offer twice the strength of rolled steel while minimizing weight of the Well Water Tank.

  • Attached welded air valve prevents loss of air pressure
  • The finest quality steel of the deep-drawn dome for extra strength and minimum weight
  • Unique positive hoop ring seal secures diaphragm and liner for added strength and reliability
  • Exclusive butyl diaphragm
  • 100% corrosion-proof virgin polypropylene liner

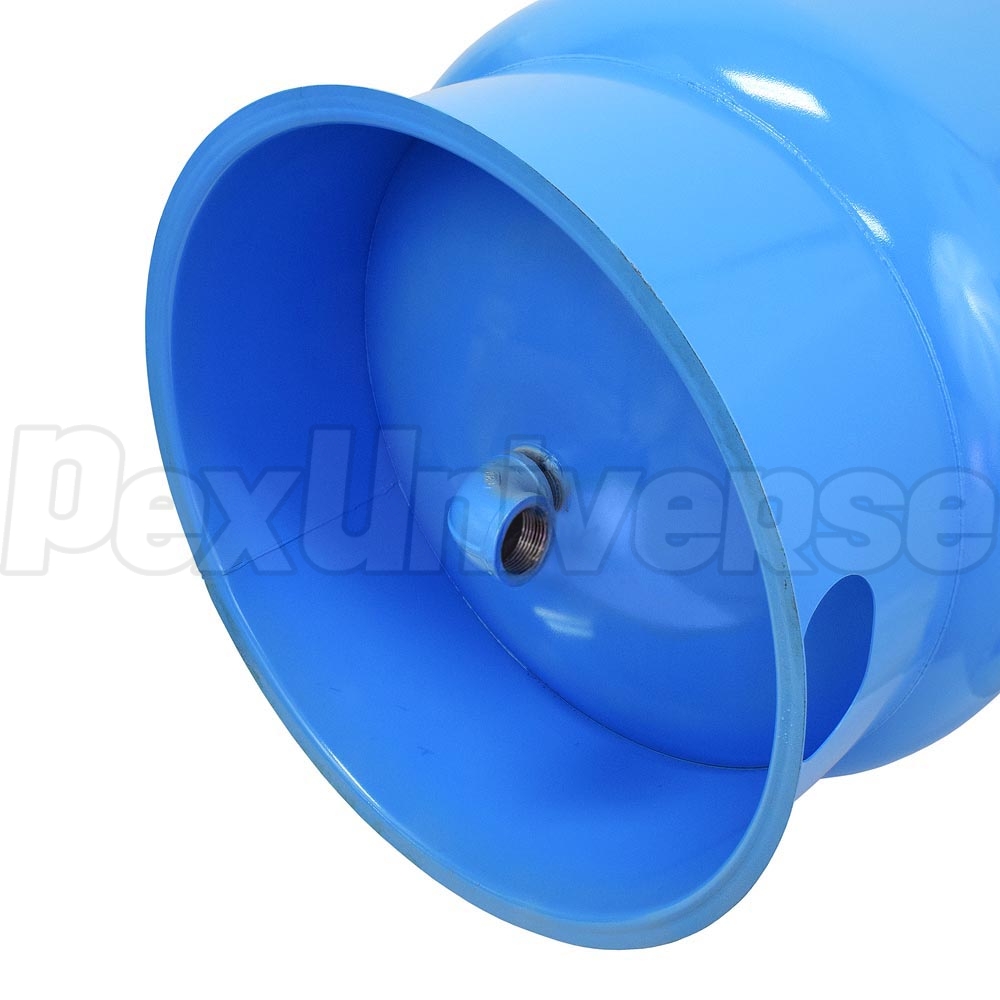

  • Stainless-steel system connection withstands aggressive water
  • Each finished tank is pressure tested for safety
  • Each finished tank is pre-pressurized to the most common pump cut-in pressure
  • Exterior appliance-like finish looks attractive while protecting the tank from the elements
  • All parts, including the polypropylene liner, butyl diaphragm, and stainless acceptance fittings are listed by NSF International Standard 61
Read more

Technical Specifications:
  • Factory pre-charged pressure: 38 PSI
  • System connection: 1-1/4" FNPT
  • Max. operating temperature: 200F
  • Max. working pressure: 125 PSIG
  • Tank volume: 44 gallons
  • Max. accepted factor: 0.77
  • Height: 36"
  • Diameter: 22"
  • Shipping weight: 69 lbs
  • Shell: Steel
  • Diaphragm: Heavy Duty Butyl
  • Liner: Virgin Polypropylene
  • Coating: Blue Enamel
Read more

7-year manufacturer's warranty.
Write a Review
Helpful? Yes 1 No
Verified Purchase
Very nice tank
My 25 year old Craftsman tank became leaky, and I couldn't repair it, so I decided to get an Amtrol tank based on good reviews. The tank is working perfectly, and was a snap to install. I'm glad there is a stud on top of the tank so I could add the pump mounting bracket, as my jet pump was mounted atop the old tank.The price was good, and the shipping was pretty fast. The tank came in the mfgrs box, but it was obvious that it didn't have the original packing material. Instead, there were a bunch of flattened cardboard boxes, and the tank flange was bent, like the tank had been dropped while out of the box. I was able to repair the flange with a hammer, as I didn't want the hassle of returning the tank.The tank gets a rating of 5 stars, its a fine product. But PexUniverse gets a rating of 2.5 stars for the pre-shipping handling damage.
By cosmicvoid (from Seattle 'ish) on 07/16/2015
Helpful? Yes No
Verified Purchase
works just fine
We lost our previous tank, so this was a replacement and it fit and functions perfectly
By jon dunham (from Montana) on 04/16/2015
