4-branch Brass Radiant Heat Manifold Set w/ 1/2" PEX adapters
Brand: Rifeng
Part#: BSM004
In Stock
Usually ships: within 1 business days
1/2" PEX adapters are included by default. For other size adapters (free upgrade) make a note at checkout.

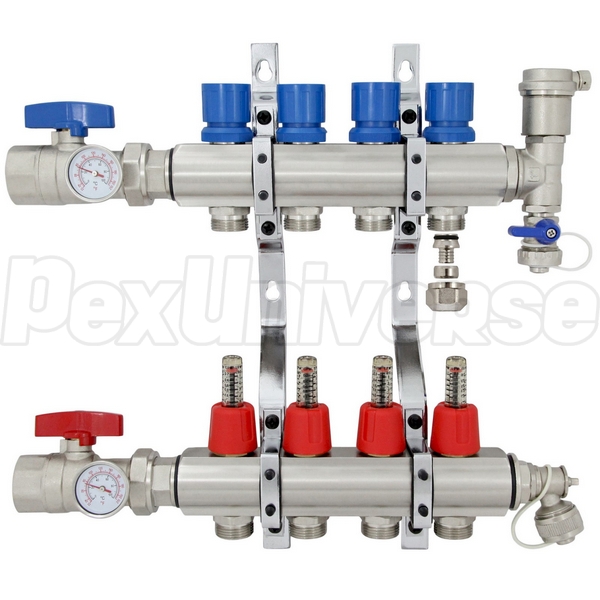

4-branch Deluxe Radiant Manifold Set. All brass construction. Nickel plated finish. Comes pre-assembled.

The following components are included in every set:

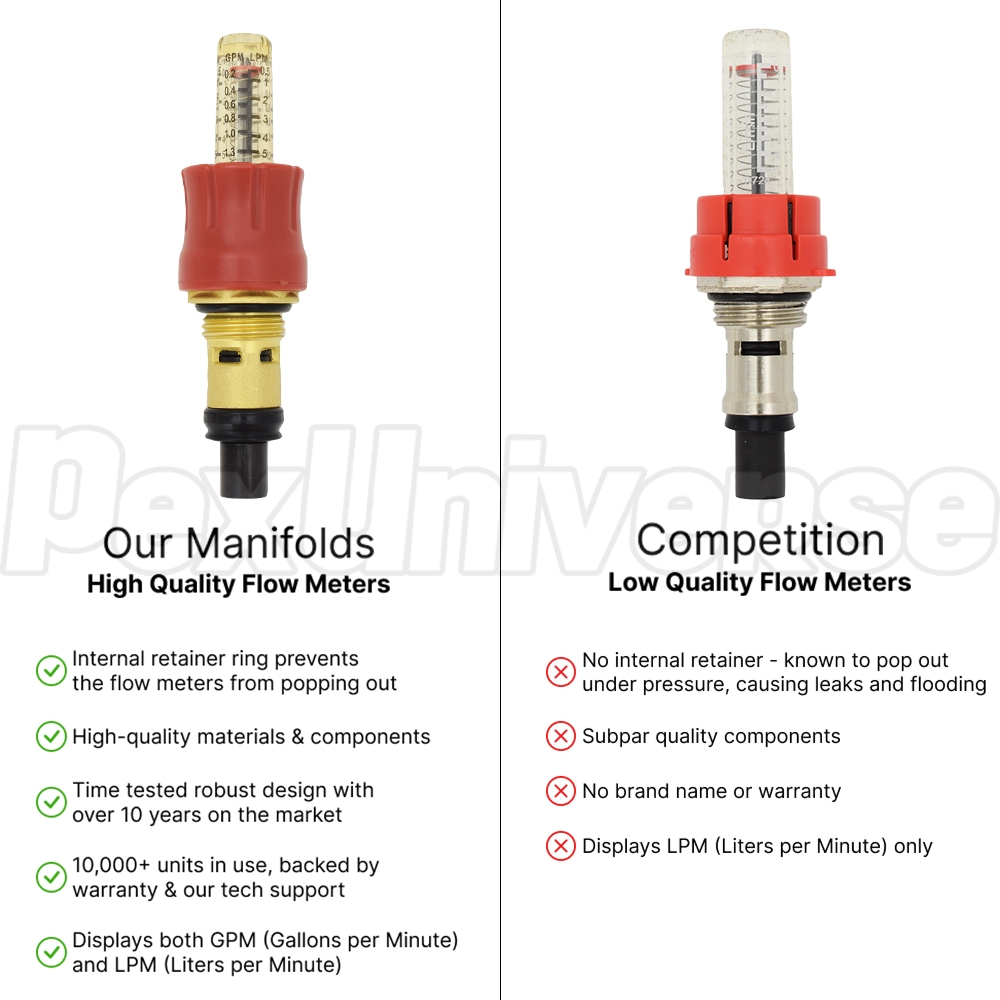

(1) Supply side radiant manifold w/ (4) adjustable flow indicators and (4) outlets for PEX tubing.

(1) Return side radiant manifold w/ (4) balancing valves and (4) outlets for PEX tubing.

(2) 1" threaded, quarter turn shut-off ball valves - one for supply manifold and one for return.

(2) Temperature gauges - one for supply and one for return manifolds to monitor supply and return water temperatures (F & C reading).

(1) Float-type air vent to eliminate air from the system (air vent caps included for pressure testing purposes).

(2) Drain/fill valves with 3/4" garden hose (drain hose) connection and a cap - on each manifold.

(8) Compression adapters for 1/2" PEX tubing (no PEX tools required to connect tubing to the manifold).

(2) Mounting brackets.

Other suggested components:
For pressure testing purposes, use a Pressure Test Kit (SKU# TESTKIT).

Technical Specifications:
  • Total number of PEX outlets: 8
  • Distance OC (On Center) between PEX outlets: 2"
  • Overall height when installed: 14.5"
  • Overall width when installed (with shut-off valves): 14.75"
  • Distance between supply and return manifolds (on center): 8.25"
  • Compatible with all types and brands of PEX tubing (Bow, Viega, Watts, Zurn, Everhot, Nibco, etc.)

Read more
Write a Review
Helpful? Yes 1 No
PEX MANIFOLD ASSEMBLY
CAN'T BEAT THE QUALITY AND TIME SAVED IN ASSEMBLING ALL THE COMPONENTS YOURSELF! THIS WILL BE USED TO CONTROL TEMP. IN A CONCRETE FLOOR SLAB ON GRADE
By Lee Tripp (from Corry',PA) on 09/20/2012
Helpful? Yes No
Verified Purchase
4-branch Brass Radiant Heat Manifold Set w/ 1/2" PEX adapters
The manifolds arrived quickly and were well packaged. I compared these to some of the more expensive manifolds on the market and I have to say I made the right choice. The fit/finish is very good and overall I feel a great value. Let's face it once setup your going to forget about it. I have already installed them in a on slab concrete floor and they are working very well.
By Verified Buyer (from Nebraska) on 02/10/2016
Ask a Question
I see that you do not recommend installing the manifolds up side down. What about installing the manifold oriented vertically with the tubes entering the manifold horizontally? Will that be satisfactory?
Helpful? Yes 1 No
The issue with upside-down and vertical installations is that the flow meters can get clogged and stop working over time, which in turn, would restrict the flow of water through the branch. If a heating system contains non-ferrous parts only (i.e. copper, brass, PEX), it should not be an issue. If, however, the system has cast iron components, they are likely to cause the above mentioned scenario. As a solution, you may have to use a magnetic dirt trap, but for the cost, it may be better to install manifold horizontally and use bend supports to route the PEX up.
By PexUniverse Customer Service on 03/08/2017
Can this manifold be turned upside down? My 1/2" PEX tubing comes from the ceiling and not the bottom as shown.
Helpful? Yes No
We do not recommend installing the manifold upside down since it will hinder the operation of flow meters and will lead to their early failure and need for replacement. Instead, if possible, install the manifold in a regular manner and route the PEX tubing to the sides and then up. You can use bend supports to assist in a 90-degree transition.
By PexUniverse Customer Service on 12/10/2015
